Device Provisioning

  1. The Incognito comes with a pre-installed SIM card and is provisioned on our GPS tracking platform.
  2. Each device is checked for connectivity prior to being delivered to a client site.
  3. The device is not IP67 rated, so be cautious when installing it in the engine bay or in an exposed location.
Warning: Do not disassemble the device, If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT touch the device before unplugging the power supply.

Installation Tips

  1. Standard installation is the connection of:
    1. Power
    2. Ground
    3. Ignition source
  2. This device can be mounted on the asset to be tracked using screws, bolts, cable ties or industrial adhesives.
  3. Mounting the device in a horizontal orientation with the label side facing up is recommended.
  4. Do not mount under metal objects.
  5. The device should be mounted as far away from the radio and speakers as possible.
  6. Connecting Wires:
    1. Wires should be connected while the module is not plugged in.
    2. Wires should be fastened to stable wires or non-moving parts. Any heat omitting and/or moving objects should be kept away from wires.
    3. There should be no exposed wires. If factory isolation was removed while connecting wires, the isolation material should be applied
    4. If wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt etc. additional isolation should be applied, and the wires should not be loose.
  7. Connecting Power Source:
    1. After the car computer goes to sleep mode, power might be still available on the power wires. Depending on the car model, this may happen in 5-30 minutes period.
    2. When the module is connected, measure the voltage again to make sure it did not decrease.
    3. It is recommended to connect to the main power cable in the fuse box.
    4. 3A, 125 V external fuse to be used.
  8. Connecting Ignition Wire:
    1. Check if it is a real ignition wire i.e. power does not disappear after starting the engine.
    2. Check if this is not an ACC wire (when the key is in the first position, most of the vehicle electronics are available).
    3. Check if power is still available when you turn off any of the vehicle device.
    4. Ignition is connected to the ignition relay output. As alternative, any other relay which has power output when ignition is on, may be chosen.
  9. Connecting Ground Wire:
    1. Ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
    2. If the wire is fixed with the bolt, the loop must be connected to the end wire.
Note: If the device is not securely mounted to the vehicle then it may trigger false accident/rollover alerts and harsh driving events.

Additional Components

CAN Adapter

  1. Be ready with a vehicle connection scheme that you have received from vehicle manufacturer or representative.
  2. Check the scheme for the current vehicle connection. Look for connectors matching PINs numbers and colours (may be different) according to connection scheme.
  3. Connect CAN adapter with Incognito:
    1. Connect CAN adapter PIN 6 (Rx) to INPUT 6 (Blue/White) of Incognito.
    2. Connect CAN adapter PIN 5 (Tx) to INPUT 5 (Yellow/White) of Incognito.
  4. Connect CAN adapter CAN wires (CAN L, CAN H) as specified in connection scheme.
  5. Connect CAN adapter positive and ground wires to the vehicle power supply lines or near Incognito power wires.
  6. Switch vehicle ignition to ACC position. CAN adapter LED diode on the back should start blinking.
  7. Configure CAN adapter to read CAN bus data or control vehicle by setting its program number:
    1. Contact your Fleetware Sales Representative or Fleetware Support and provide the vehicle make, model and year to obtain the program number.
    2. The Fleetware Team will then set the program number remotely and confirm once completed.
Do not swap CAN L and CAN H lines. Not all CAN adapter wires may be used in vehicle.
Do not swap power supply lines. Make sure that voltage does not exceed 30V.

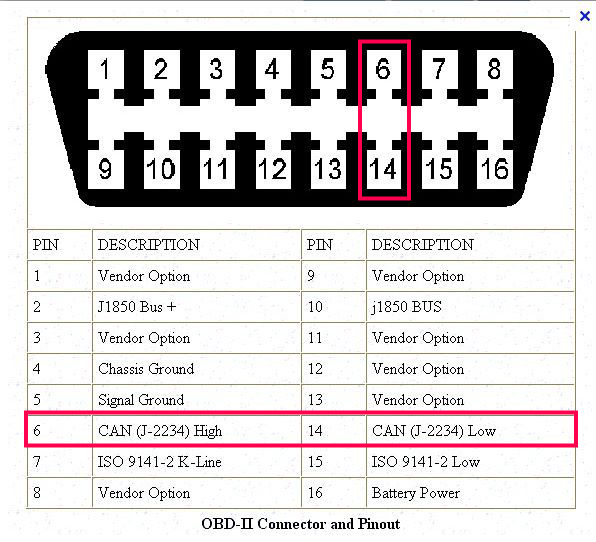

If you are having trouble finding the CAN line for the vehicle, please consult the vehicle manual or use the OBD-II standard as noted in the pinout diagram below.


eCAN Contactless Adapter

  1. Follow the same 1, 2, 3 installation steps as above.
  2. Connect the appropriate CAN bus pair of wires between the CAN adapter and ECAN02:
    1. If CAN1 line need to be connected as specified in the connection scheme:
      1. Connect CAN adapter CAN1 L to CAN L of ECAN02.
      2. Connect CAN adapter CAN1 H (Red/White) to CAN H (Blue/White) of ECAN02.
    2. If CAN2 line need to be connected as specified in the connection scheme:
      1. Connect CAN adapter CAN2 L to CAN L of ECAN02.
      2. Connect CAN adapter CAN2 H (Green/White) to CAN H (Blue/White) of ECAN02.
  3. Fasten ECAN02 between vehicle CAN bus wires according to the connection scheme. Make sure CAN H and CAN L of vehicle corresponds to CAN H, CAN L markings on ECAN02 PCB.
  4. Connect CAN adapter positive and ground wires to the vehicle power supply lines or near Incognito power wires.
  5. Switch vehicle ignition to ACC position. CAN adapter LED diode on the back should start blinking.
  6. Configure CAN adapter to read CAN bus data or control vehicle by setting its program number:
    1. Contact your Fleetware Sales Representative or Fleetware Support and provide the vehicle make, model and year to obtain the program number.
    2. The Fleetware Team will then set the program number remotely and confirm once completed.
Do not swap CAN L and CAN H lines. Not all CAN adapter wires may be used in vehicle.
Do not swap power supply lines. Make sure that voltage does not exceed 30V.

Wiring Harness

Colour
Function
Notes
Red
Power (Voltage Input)
10-30 Volts DC external power
Black
Ground
Main ground
Yellow
Digital Input 1
Ignition source, 0-30 Volts
Green/White
Digital Input 2
Digital Input, 0-30 Volts
Grey
Digital Input 3
Digital Input, 0-30 Volts
Orange/White
Digital Output 1
Digital Output, Max. 0,5 A DC
Purple
Digital Output 2
Digital Output, Max. 0,5 A DC
Dark Grey
Digital Output 3
Digital Output, Max. 0,5 A DC
Yellow/White
Input 5 (RX EXT)
RX EXT (LVCAN - RX)
Blue/White
Input 6 (TX EXT)
TX EXT (LVCAN - TX)
Blue
1WIRE Power
+3,8 V output for 1-Wire devices
Green
1WIRE Data
Data for 1-Wire devices

Note: Please refer to the vehicle or asset wiring information before wiring the device, to ensure that the correct wires are being connected.

Led Indicator



LED
Behaviour
Meaning
Navigation
Permanently on
GNSS signal is not received

Blinking every second
Normal mode, GNSS is working

Off
GNSS is turned off because device is not working OR device is in sleep mode

Blinking fast constantly
Device firmware is being flashed
Status
Blinking every second
Normal mode

Blinking every two seconds
Sleep mode

Blinking fast for a short time
Modem activity

Off
Device is not working OR device is in boot mode

Device Testing

On completion of the installation, please contact us on 1300 88 36 79 to allow us to check that the device is correctly functioning.

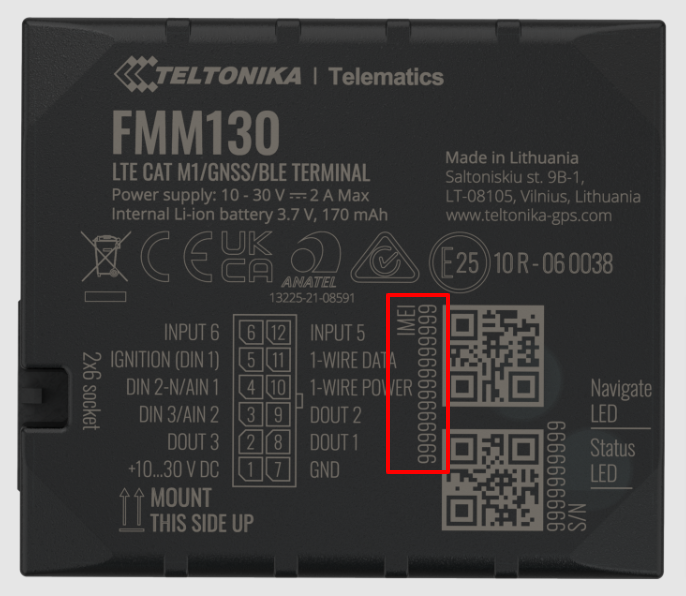

Please have the device IMEI number (printed on the device) and Customer Name ready.
