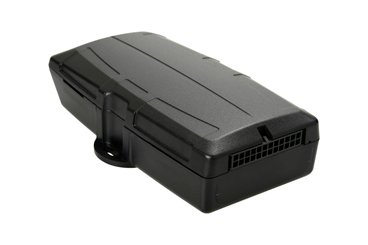

1. Standard installation is the connection of:

1. Power

2. Ground
3. Ignition source

4. Momentary Duress Switch

2. This device can be mounted on the asset to be tracked using screws, bolts, cable ties or industrial adhesives.
3. Mounting the device in a horizontal orientation with the label side facing down is recommended.

4. Do not mount under metal objects.
5. The device should be mounted as far away from the radio and speakers as possible.


Note: If the device is not securely mounted to the vehicle then it may trigger false accident/rollover alerts and harsh driving events.

1. Connecting Wires:

1. Wires should be connected while the module is not plugged in.

2. Wires should be fastened to stable wires or non-moving parts. Any heat omitting and/or moving objects should be kept away from wires.

3. There should be no exposed wires. If factory isolation was removed while connecting wires, the isolation material should be applied

4. If wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt etc. additional isolation should be applied, and the wires should not be loose.

2. Connecting Power Source:

1. After the vehicle computer goes to sleep mode, power might be still available on the power wires. Depending on the vehicle, this may happen in 5-30 minutes period.

2. When the module is connected, measure the voltage again to make sure it did not decrease.

3. It is recommended to connect to the main power cable in the fuse box.

4. 3A, 125 V external fuse to be used.

3. Connecting Ignition Wire:

1. Check if it is a real ignition wire i.e. power does not disappear after starting the engine.

2. Check if this is not an ACC wire (when the key is in the first position, most of the vehicle electronics are available).

3. Check if power is still available when you turn off any of the vehicle device.

4. Ignition is connected to the ignition relay output. As alternative, any other relay which has power output when ignition is on, may be chosen.

4. Connecting Ground Wire:

1. Ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.

2. If the wire is fixed with the bolt, the loop must be connected to the end wire.

5. Connecting Iridium Modem:

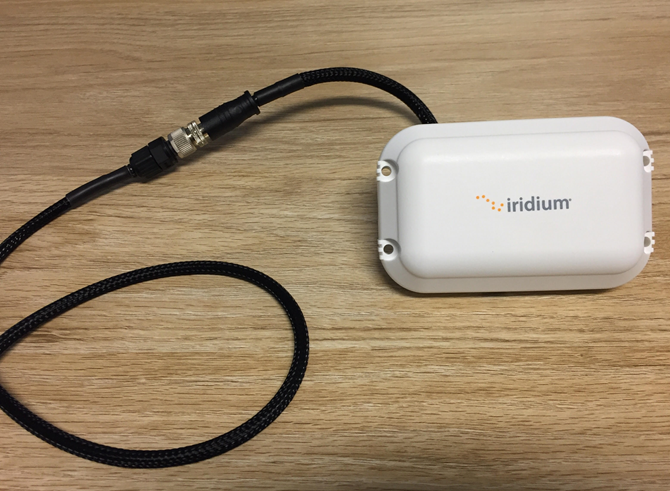

1. The device is delivered with an Iridium satellite modem that will be plugged into the Flexi’s wiring harness.




1. The extra red wire coming out of the harness is POWER IN for the modem.






1. Connecting Duress Switch:

1. Install the momentary duress switch included in the box by connecting one terminal to the Pink Digital Input 1 wire on the Remote Worker’s wiring harness.

2. Connect the other terminal to ground.

3. The momentary duress switch is to be installed with the missile style switch covers also included in the box.




Test these devices thoroughly as it is crucial that they are functioning properly.

Note: Please note the switch must be held in the on position for 3 seconds to activate.

Selecting a Mounting Location

Bottom Mount

1. Do not remove the red plastic over the double side tape. Removing the red tape exposes the double sided tape which may cause the tape to inadvertently adhere the Iridium Edge to the mounting surface.

2. Drill a single 15mm hole at the desired location for the Iridium Edge. Ensure that the surface is flat to avoid water ingress under the Iridium Edge.

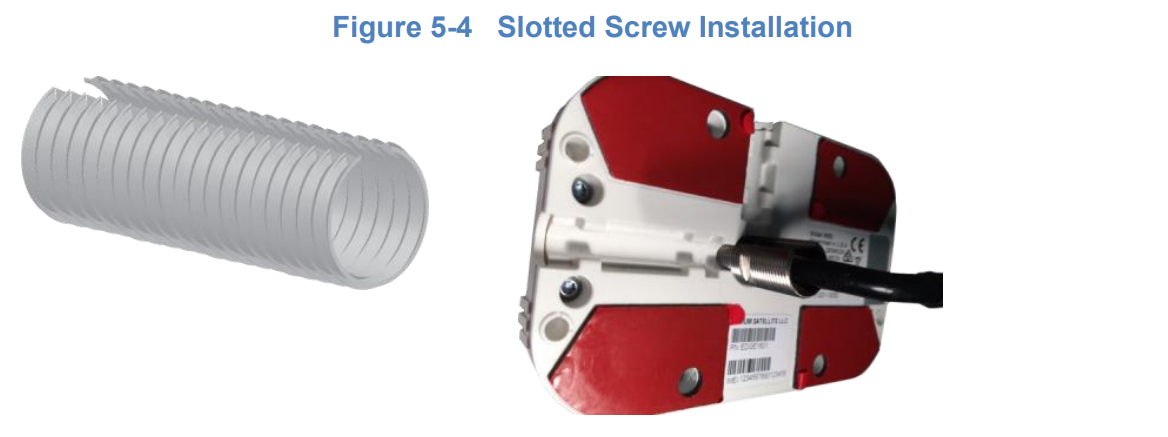

3. Insert the Slotted Screw into Iridium Edge baseplate and screw until finger tight.

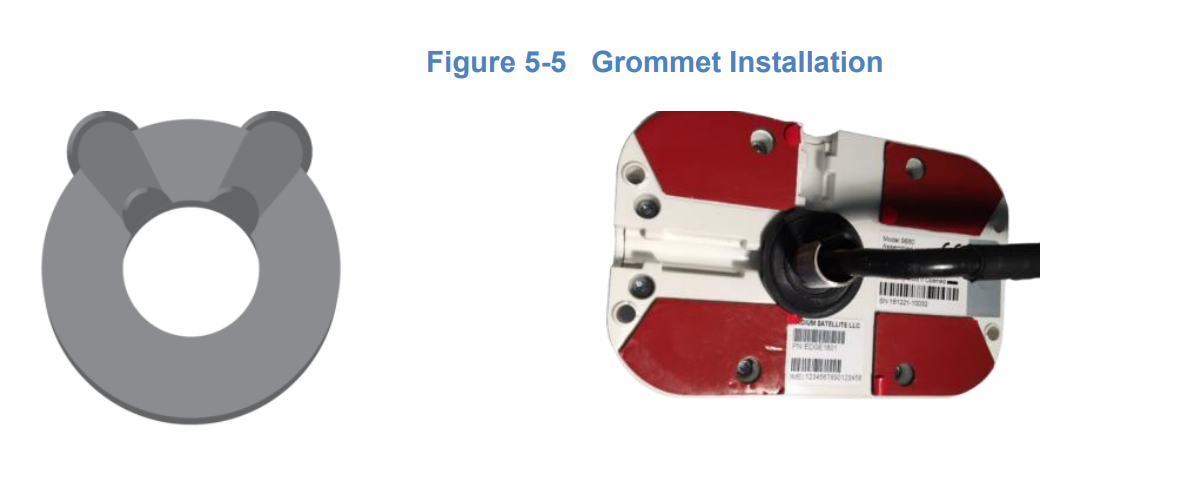

4. Carefully press the Rubber Grommet into the baseplate until it is flush with the Iridium Edge.


5. Optionally, fill the two side channels with silicon sealant, taking care that it does not unseat the rubber grommet. The two grey plugs shipped with the Iridium Edge can be optionally retained.

6. Mount the Iridium Edge and drop the pigtail connector through the drilled hole.

7. Place the Slotted Nut over the top of the pigtail cable above the heat shrink such that the wide side of the tapered Slotted Nut goes over the cable first.


8. Tighten the Slotted Nut into the screw. The Slotted Nut should be tightened sufficiently to compress the Rubber Grommet and to prevent water from getting under the Iridium Edge and then down inside of the installation. Do not exceed a 5N-m when tightening the nut.

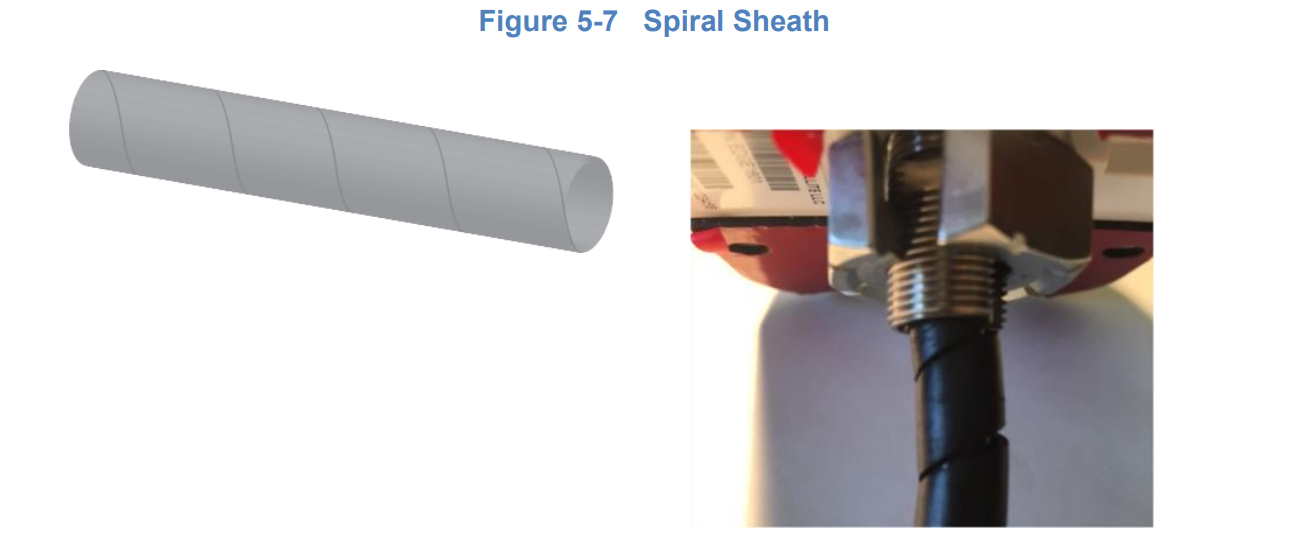

9. The Spiral Sheath protects the pigtail from chaffing. Unwrap the sheath and wrap it around the pigtail just above the heat shrink.


10. Firmly press the sheath so that it makes contact with the Iridium Edge’s baseplate and goes inside the Slotted Screw.

11. Connect and screw the mating cable to the Iridium Edge’s pigtail connector. Tighten until finger tight. Do not use any wrenches or tools to tighten the cable connectors.

12. Ensure that the Iridium Edge pigtail cable is strain relieved. It is very important that the hanging cable is properly strain relieved and not left hanging such that the cable’s weight and vibration pulls on the Iridium Edge’s pigtail connector.


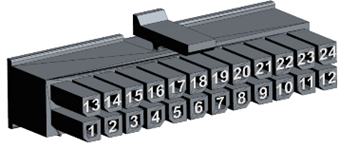

1. Connect Brown and Green (Pin 13 and Pin 14) on the Remote Worker to the Red iButton Signal Line on the iButton reader
2. Connect the Black iButton wire to Ground

3. Connect Green Switched Ground (Pin 10) on the Remote Worker to the Black Buzzer Wire

4. Connect the Yellow Buzzer Wire to Power
