Manual Creation of Services
Manual Creation of Services
Click on the Create service button in the upper right corner to add a new service. This button is also available in the properties of the service objects (in this case, the object for which you create a service is specified automatically in the Service object field).
Two tabs are available in the service creation window: General and Line items.
General

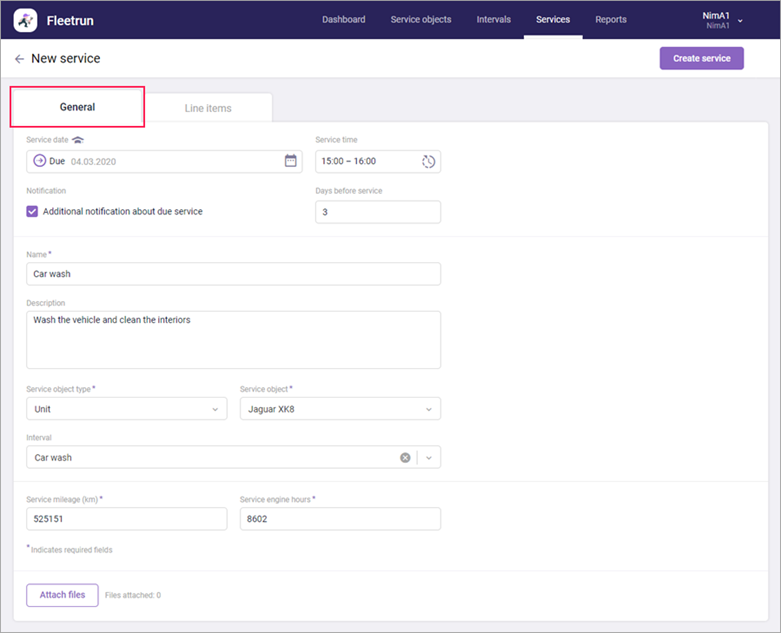

On the General tab, the basic properties of the service are indicated: date, name, description, service object type, service object, interval, mileage and engine hours values. It is also possible to attach a file (the Attach files button).
Service Date
Here you can indicate the status of the service and the date of its completion. Click on this field to open the menu. In its upper part, you can select the status (Due, In progress or Closed), and in the calendar below you can specify its time frames (in accordance with the selected status).
For the service with the Due status, indicate the scheduled date (future or current), for the In progress status — the start date (past or current), for the Closed status — the dates of start (past or current) and end (past or current). To mark one day as the start and end of the service, double-click on it in the calendar.
- Service time - the start and end time of the service
- Notification - an additional notification for a due service. Activate this option to receive a notification several days before the start of the service. To get notified, you should configure notifications to an external server, email or online notifications about due services.
- Days before service - here you should specify how many days before the start of a due service you want to receive an additional notification. You can type only numbers in the field.
- Name - the name of the service. The required field. The maximum allowed length is 128 characters.
- Description - a commentary on the service. The maximum allowed length is 512 characters.
- Service object type - the type of the service object for which the service is being created. The following types are available: unit, driver, trailer.
- Service object - the name of the vehicle or driver for which the service is being created. The field works as the dynamic filter that allows you to quickly find a service object from the list of the available objects. To clear the field, click on
. - Interval - if service intervals are assigned to a object, you can indicate one of them. The data of the Name and Description fields, as well as the data of the Line items are filled in automatically. To clear the field, click on
.
- Service mileage - the mileage value at the moment of service. By default, the actual data at the moment of service creation is used. The required field.
- Service engine hours - the engine hours value at the moment of service. By default, the actual data at the moment of service creation is used. The required field.
When filling in the Service mileage and Service engine hours fields, you can enter the values manually or use the buttons for auto-completion (for the Closed status). When auto-completion is used, the value of mileage (engine hours) from the unit's first message for the selected interval is used as the initial value, and the value from the last message is used as the final one.

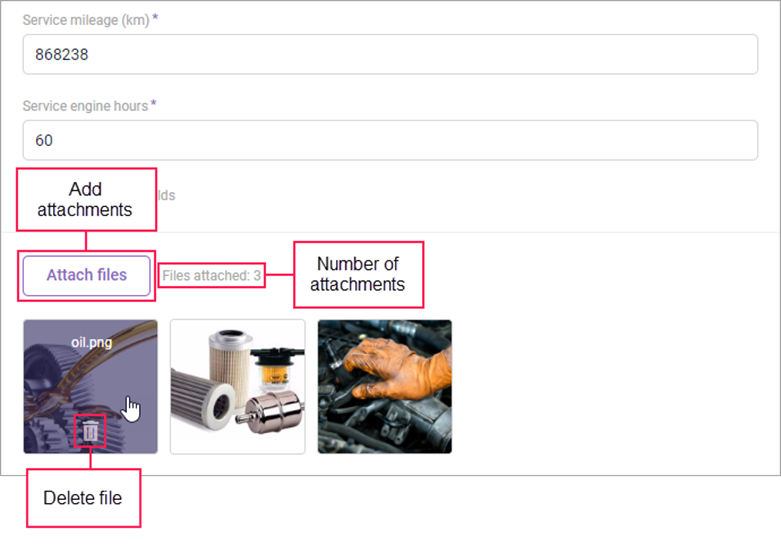

The files of the following formats can be attached to a service: JPEG, PNG and PDF. The maximum total size of all attachments should not exceed 32 MB.
To remove an attached file, pause on its thumbnail and press the icon
. Clicking on the thumbnail itself opens the file in full size in a separate browser tab.
. Clicking on the thumbnail itself opens the file in full size in a separate browser tab.
Attaching and deleting files is not available for the services in the archive.
Line items
On the Line items tab, you can indicate the cost of parts and labour for the service. The principle of adding line items is the same as in the service intervals.
You can create services for several units, drivers, and/or trailers at once on the Service objects page.
