Vehicle Monitoring

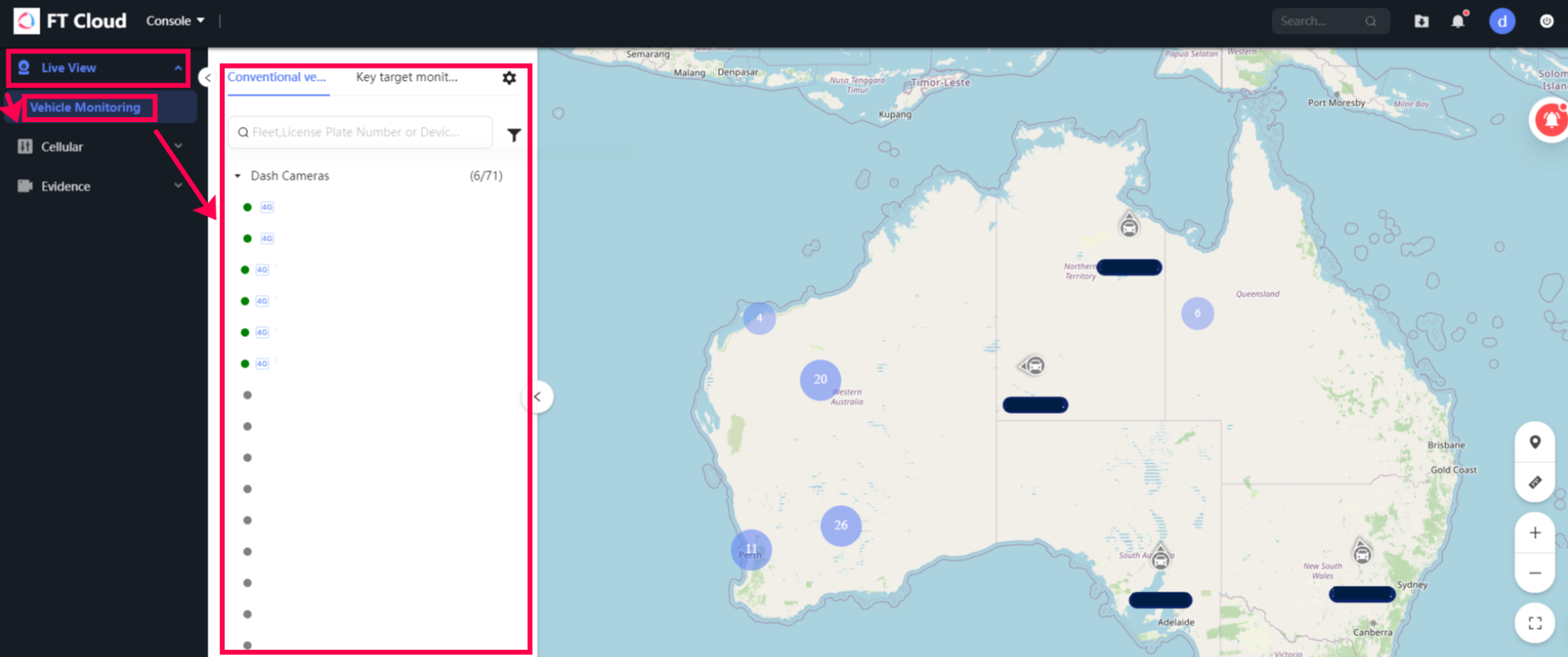

Click on Live View, and select Vehicle Monitoring and a popup window will appear which will display all camera units under your account:

If you hover your curser over a unit, three icons appear to the right of the unit as seen below:

1. Key Targeting;
   The star icon is used for highlighting that unit and viewing it in the Key target monitoring tab:

   By clicking on the Focus icon, you can see this unit specifically in the Key target monitoring tab:



2. Vehicle Information;

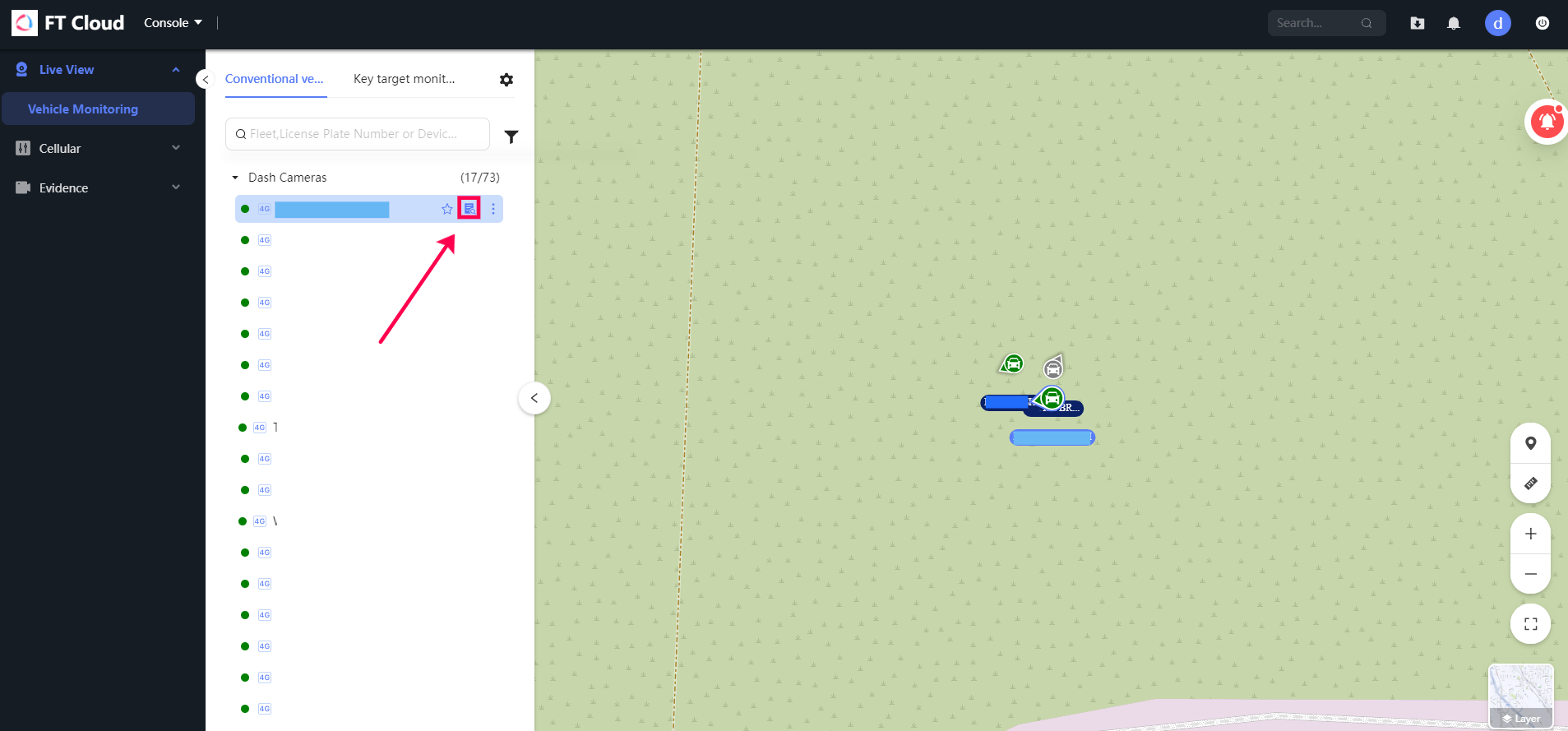

   If you click on the second icon, it will show vehicle information in the popup window:

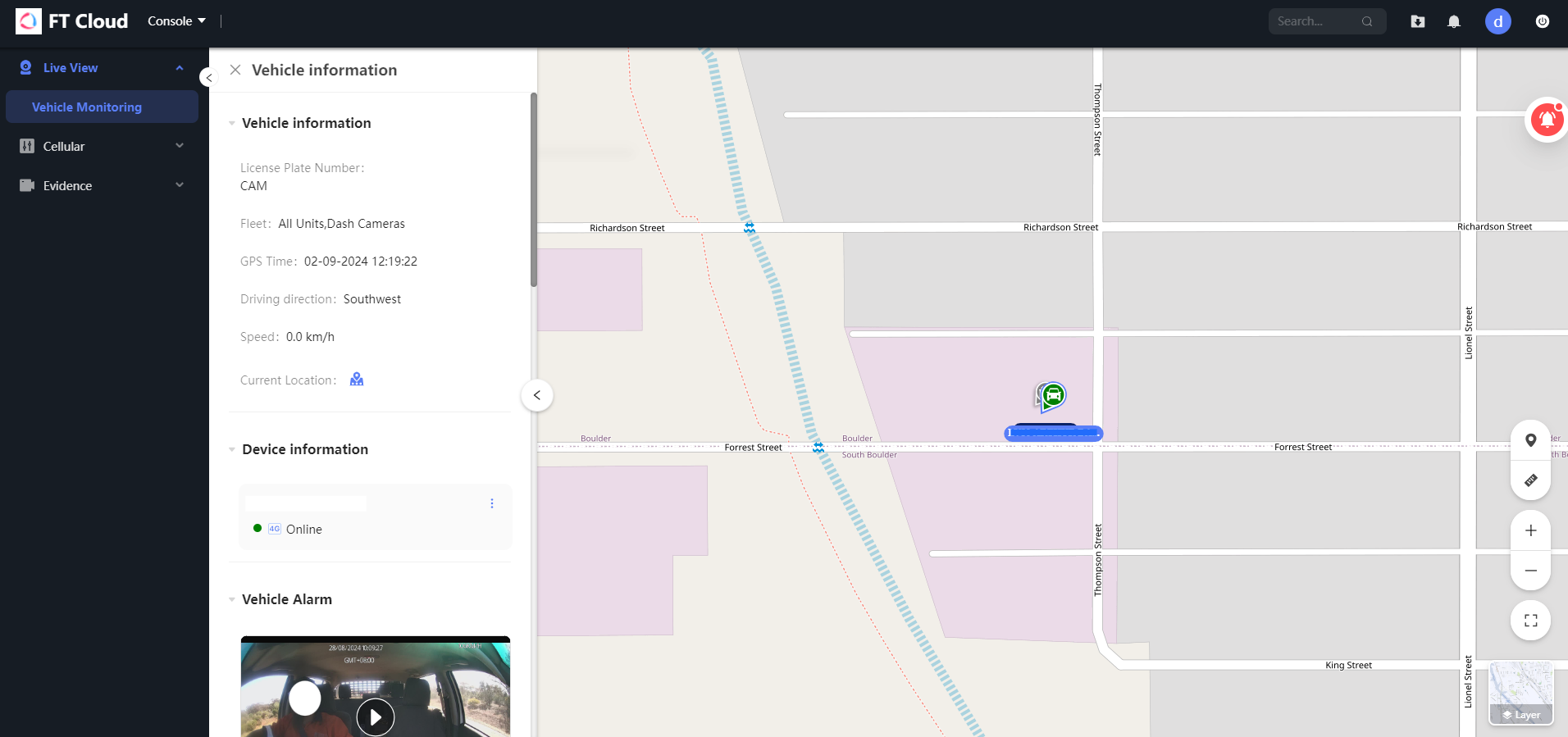

   By clicking on the Details icon, you can view Vehicle information, Driver information and Device information:



3. Additional Tracking Options;

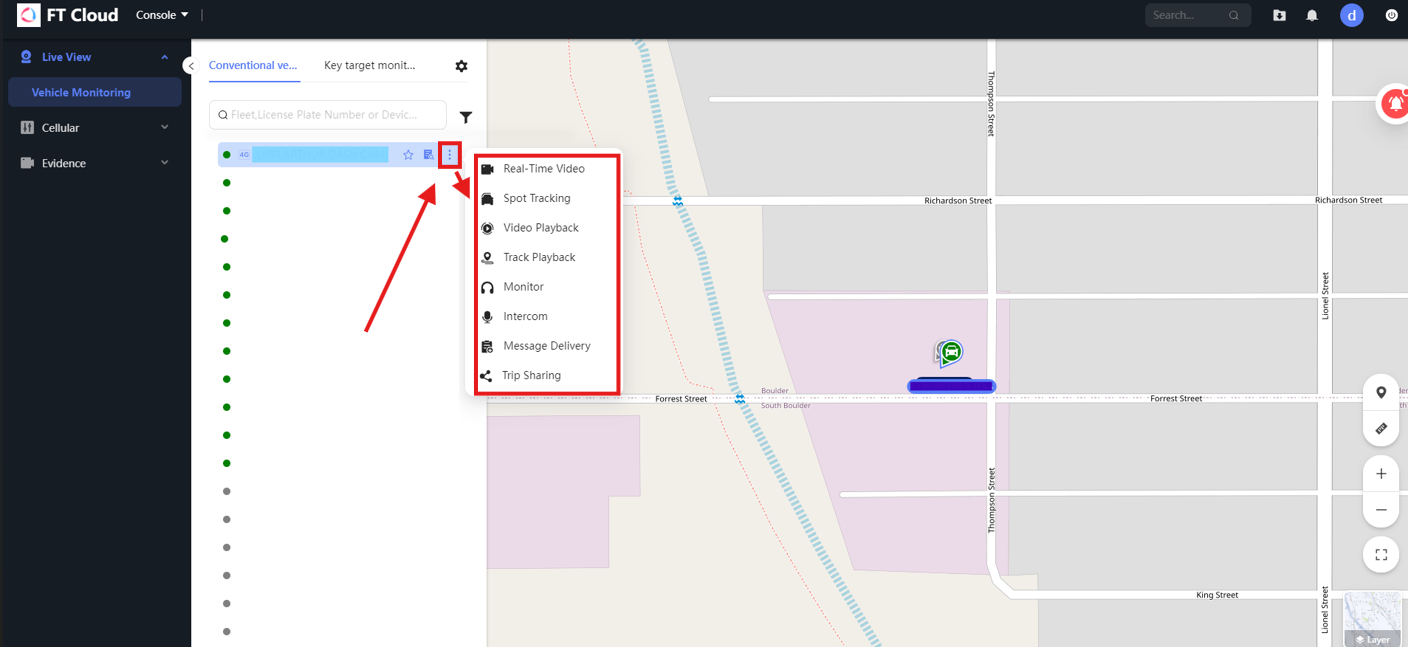

   Click on the three dots icon next to the unit name, and several different options are available:

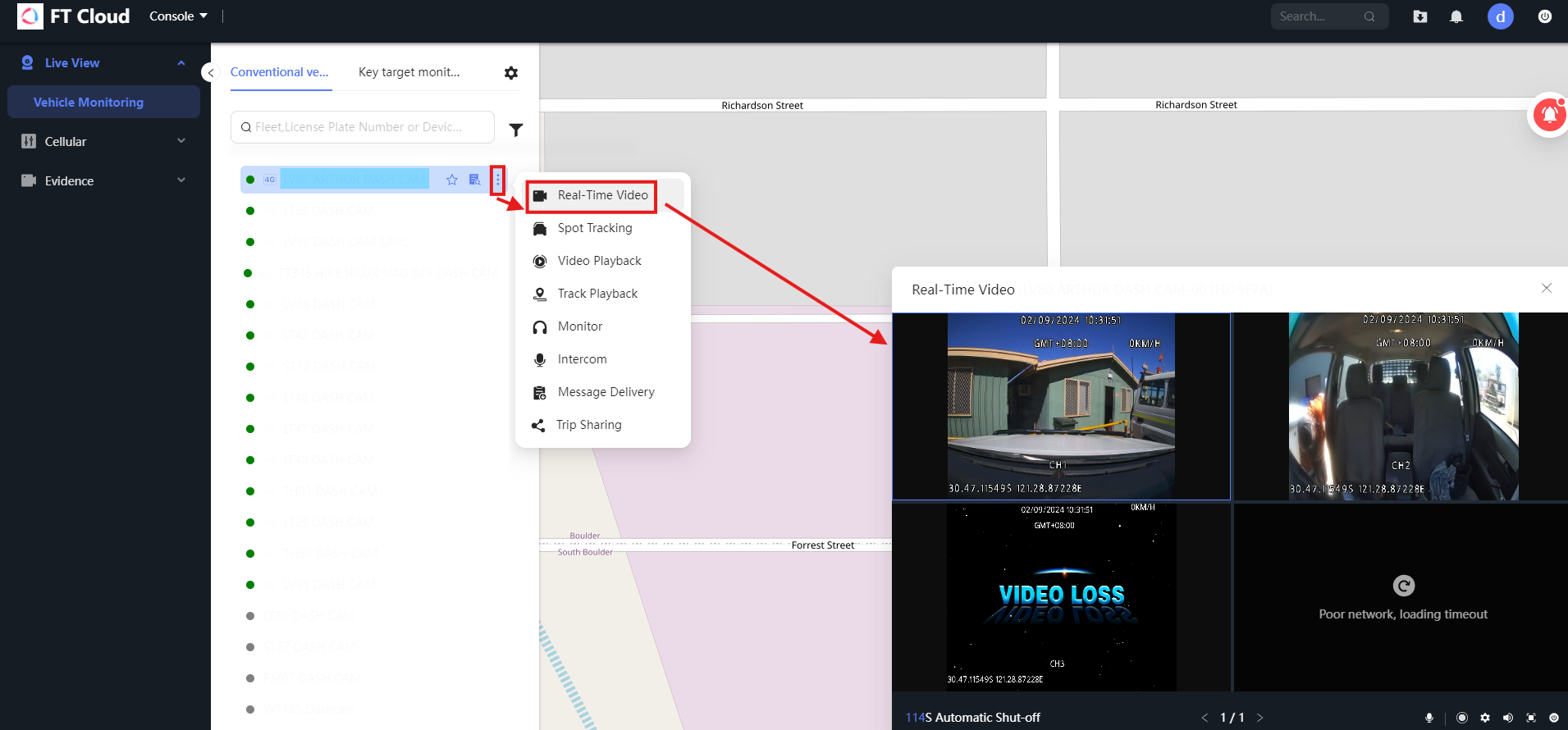

1. Real-time video; allows you to view a vehicle in real time, however, you can only view the real-time video when the unit is online:

1. Channel Switching;
   You can adjust which channel/s you want displayed in the Real-time video by clicking on the Settings icon and choosing the channel/s you want to display:

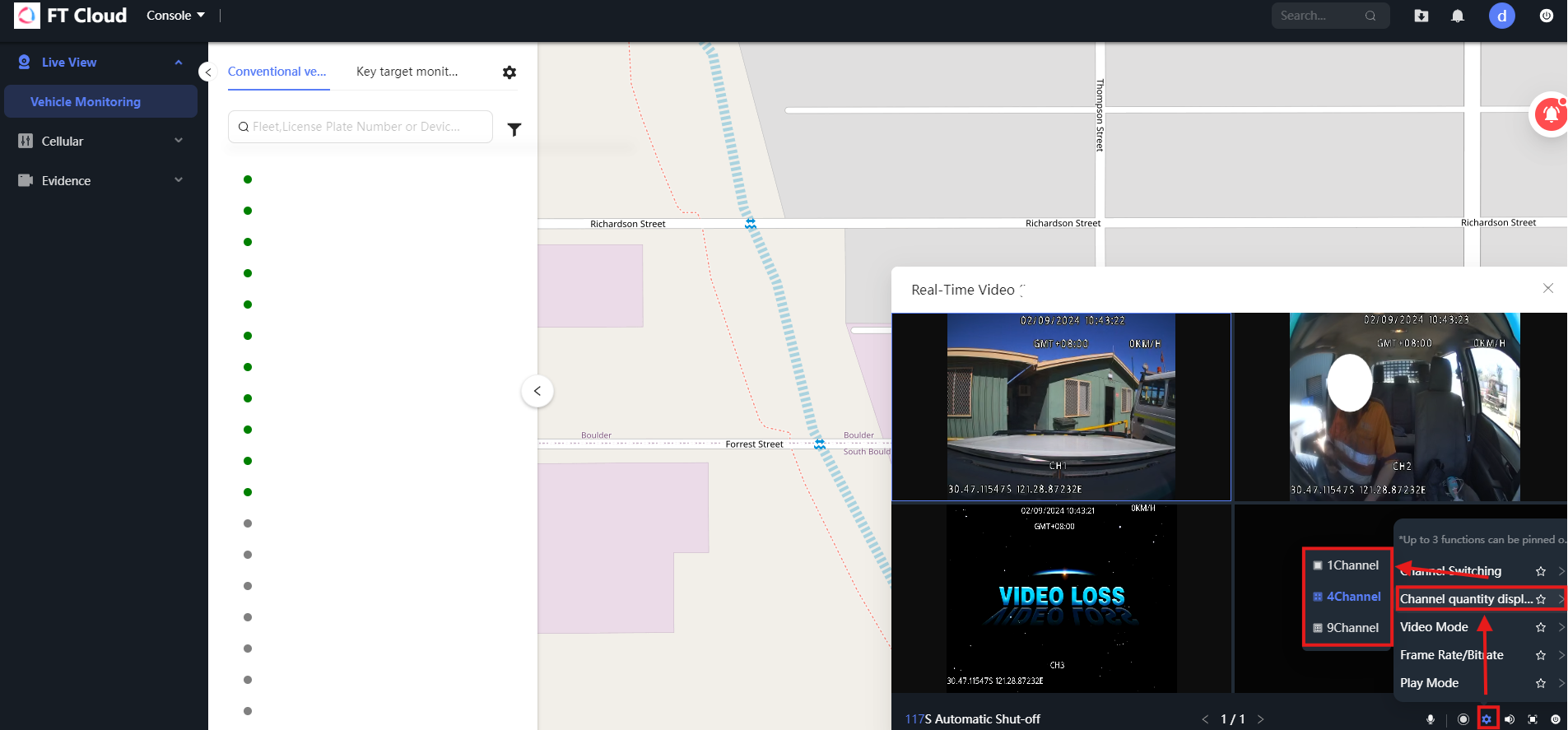

2. Channel Quantity Display;
   You can decide how many channels you want to display on the screen. By clicking on Channel Quantity Display, you can see three ways to display 1, 4, 9 channels on the screen:

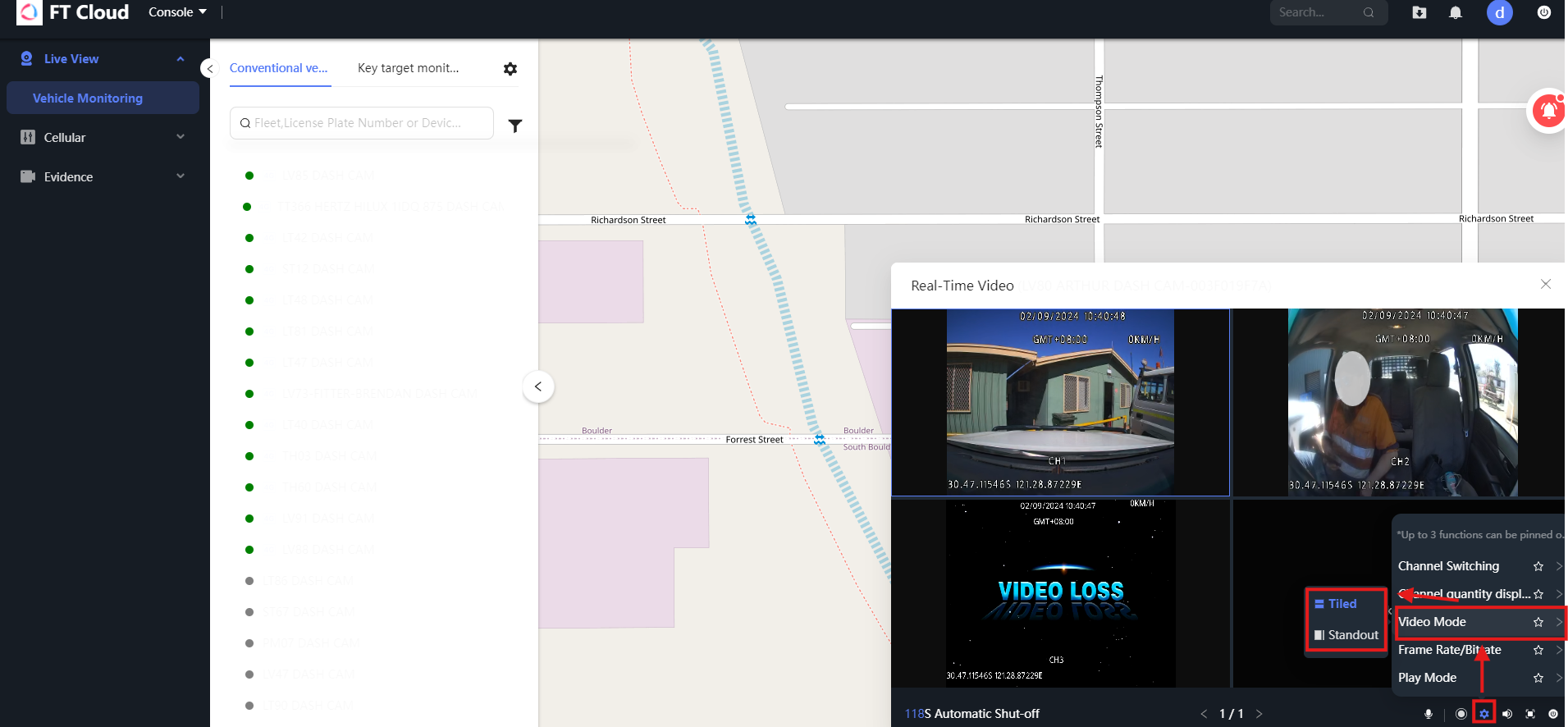

3. Video Mode;
   You have the option to choose a different layout to display the channels, click on Video mode, and select tiled or standout mode as your display preference:
4. Frame Rate;
   In the Frame rate/bitrate option, you can tick the relevant checkbox to display specific parameters on the screen:
5. Additional Real Time Video Settings;
   Next to the Settings icon, you can see the Watch and Record, Volume, Full-screen and Close video icons.
   You can adjust the volume, change it to full screen, and close the video by clicking on these icons:

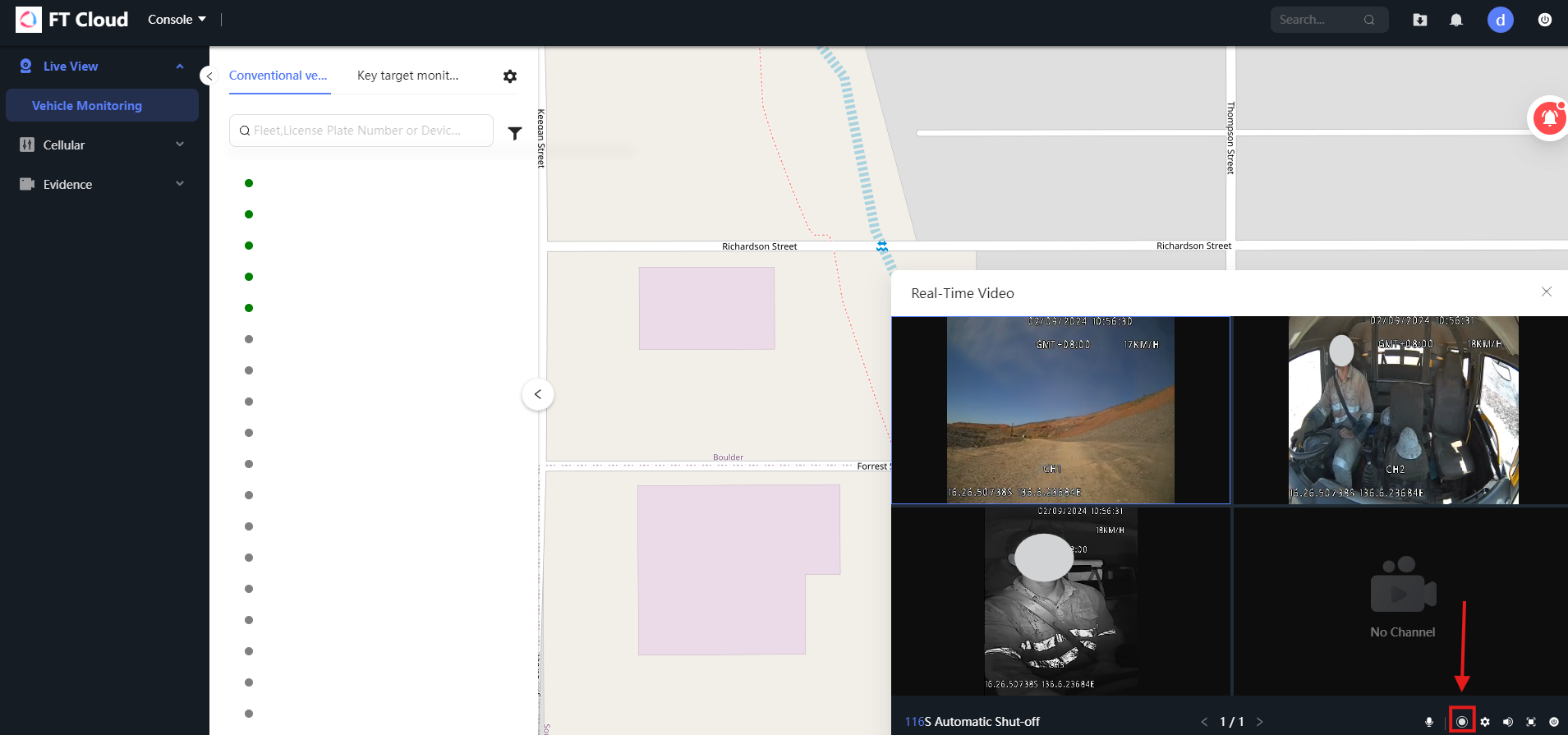

6. Recording Videos on Real Time Video;
   You can also record video snippets from this location by clicking on the record button and saving the file.

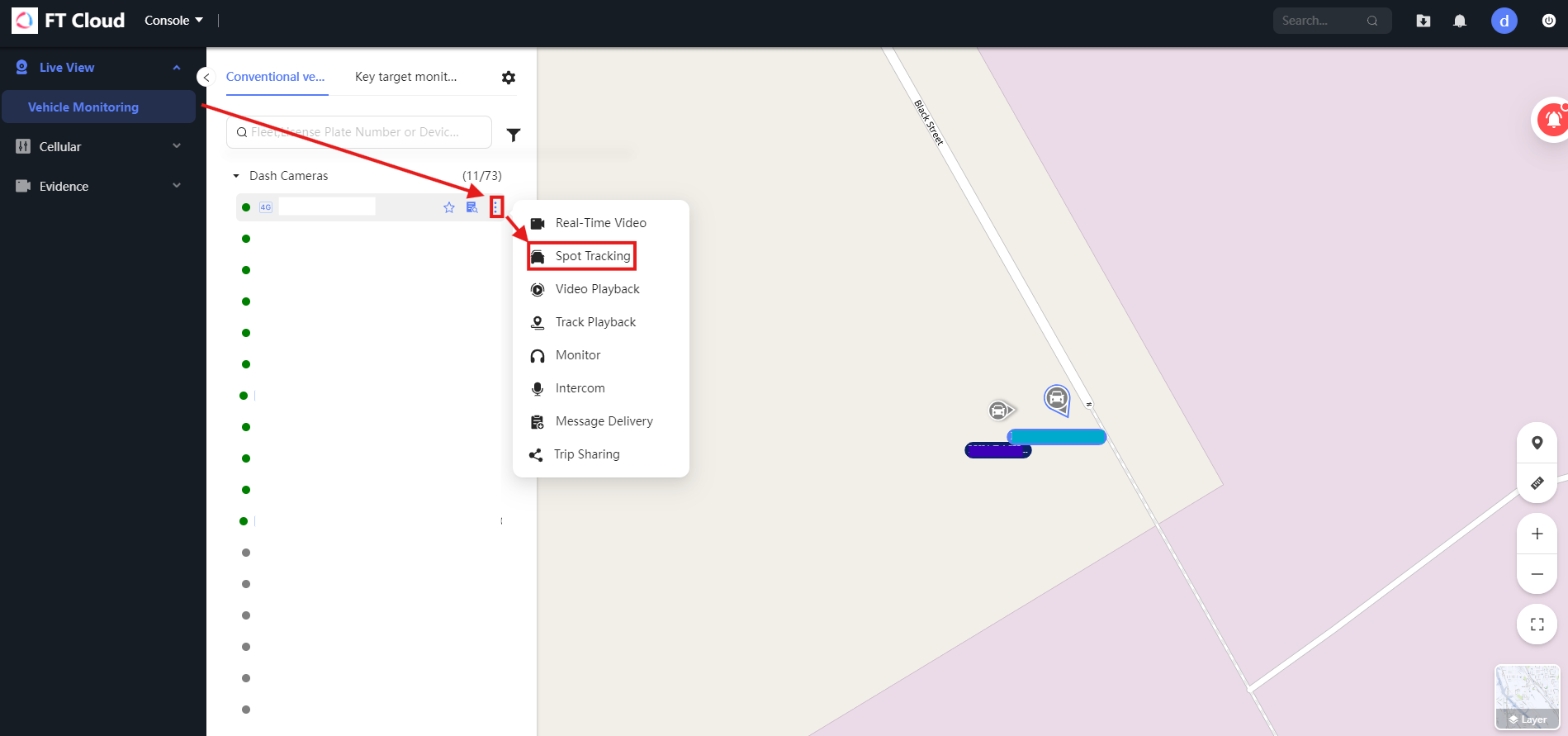

2. Spot Tracking;
   Another option available when clicking on the three dots icon in Vehicle Monitoring:

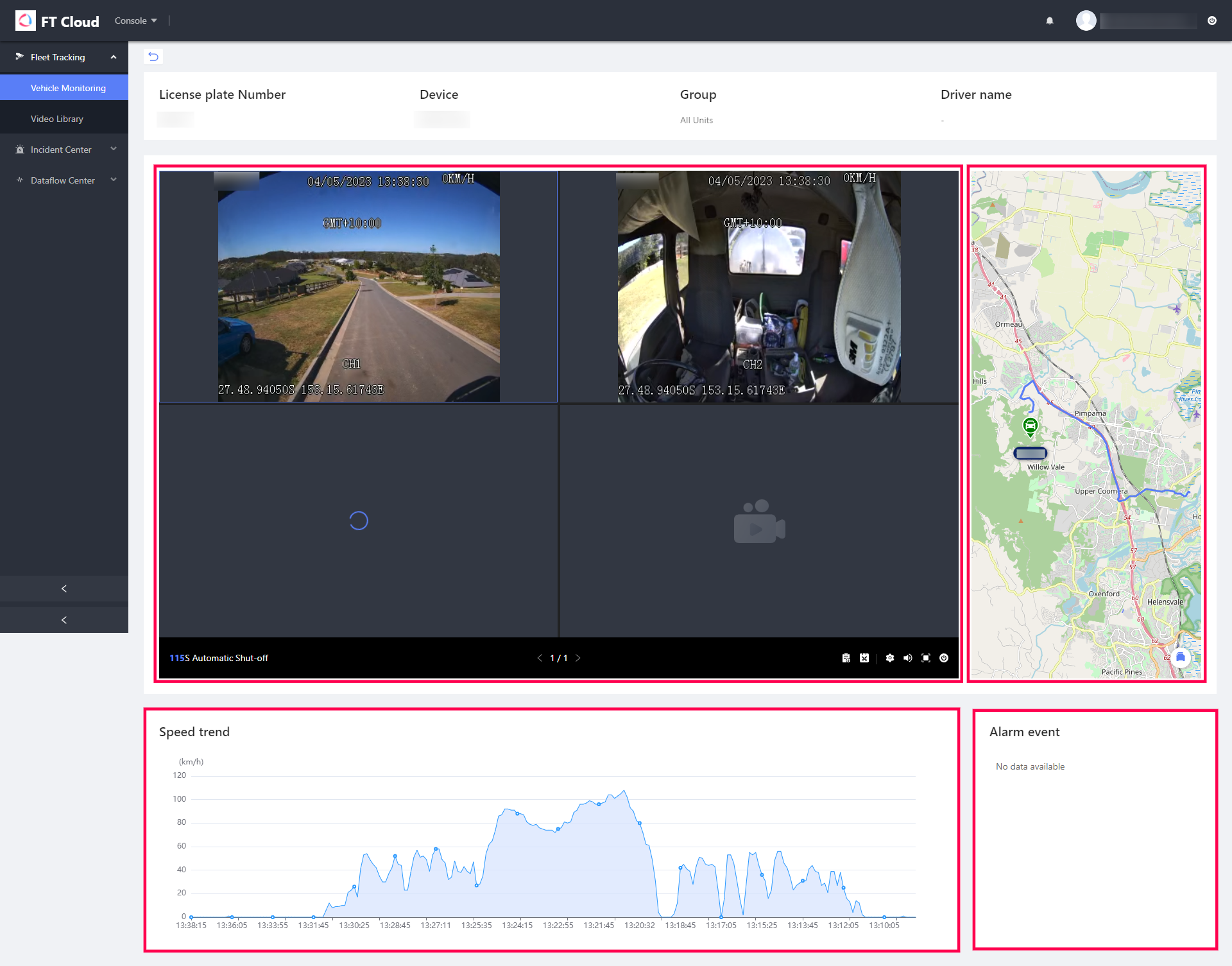

   This function allows you to see detailed information about the unit which includes the GPS location on the map, Speed trend and Alarm event data:

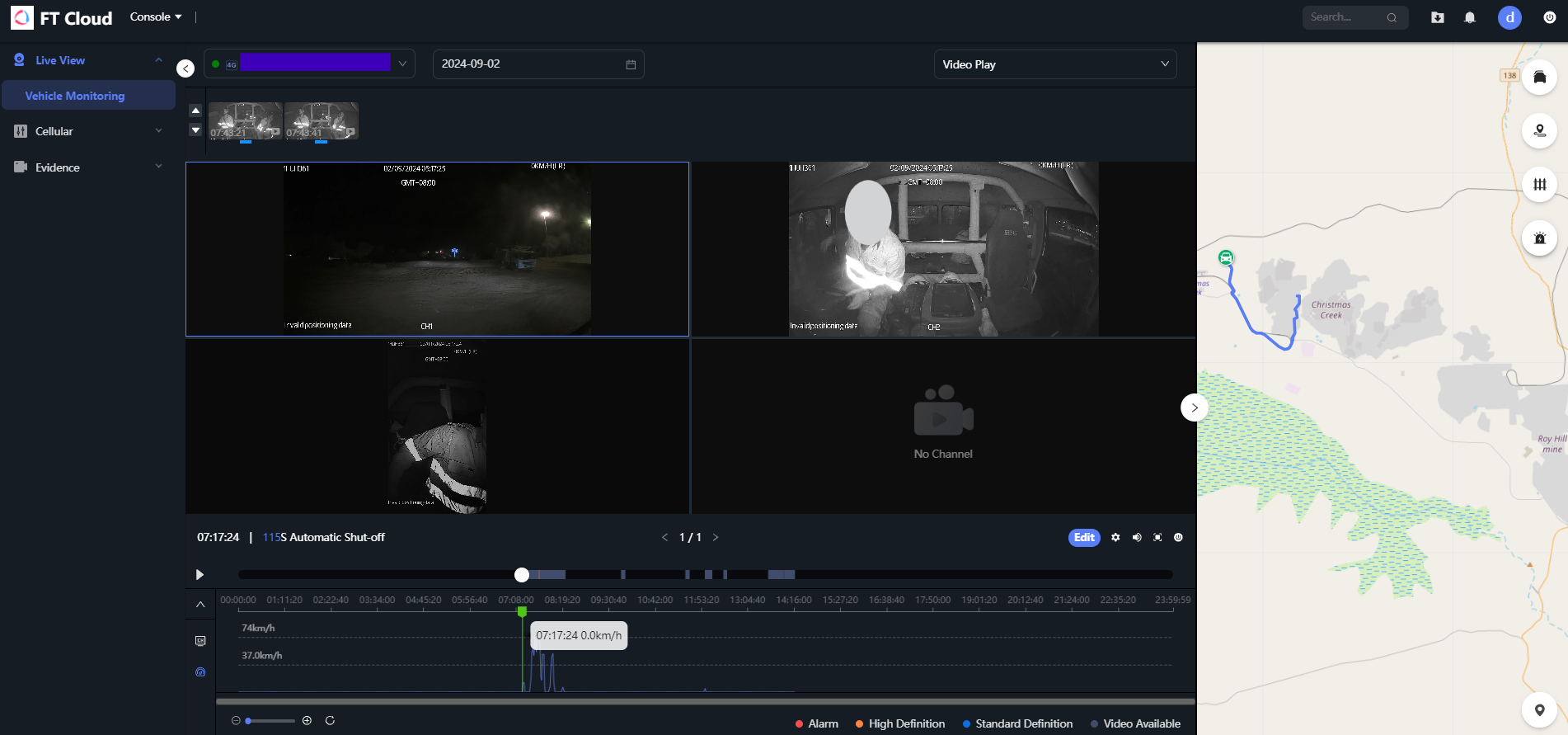

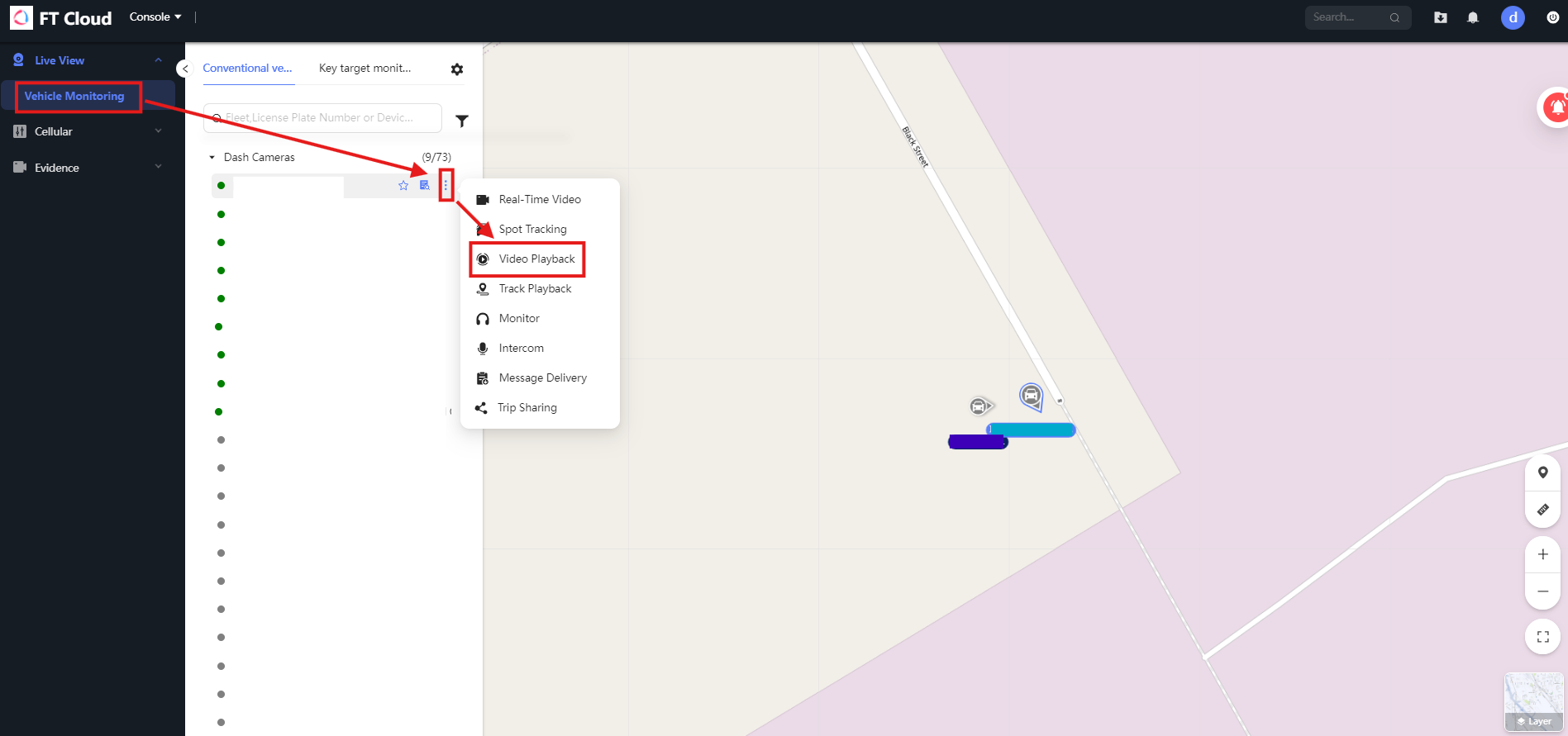

3. Device playback;
   allows you to review video footage for a specific date and time interval:


   A date labelled red has alarms, a date labelled green has no alarms associated.




4. Track playback;
   allows you to view historical travel of the unit, you can specify a date and time interval and view the speed curve data:

   Speed Curve data is displayed in a graph, with a visual representation of the trips of the vehicle and any alarms noted on the left hand side:

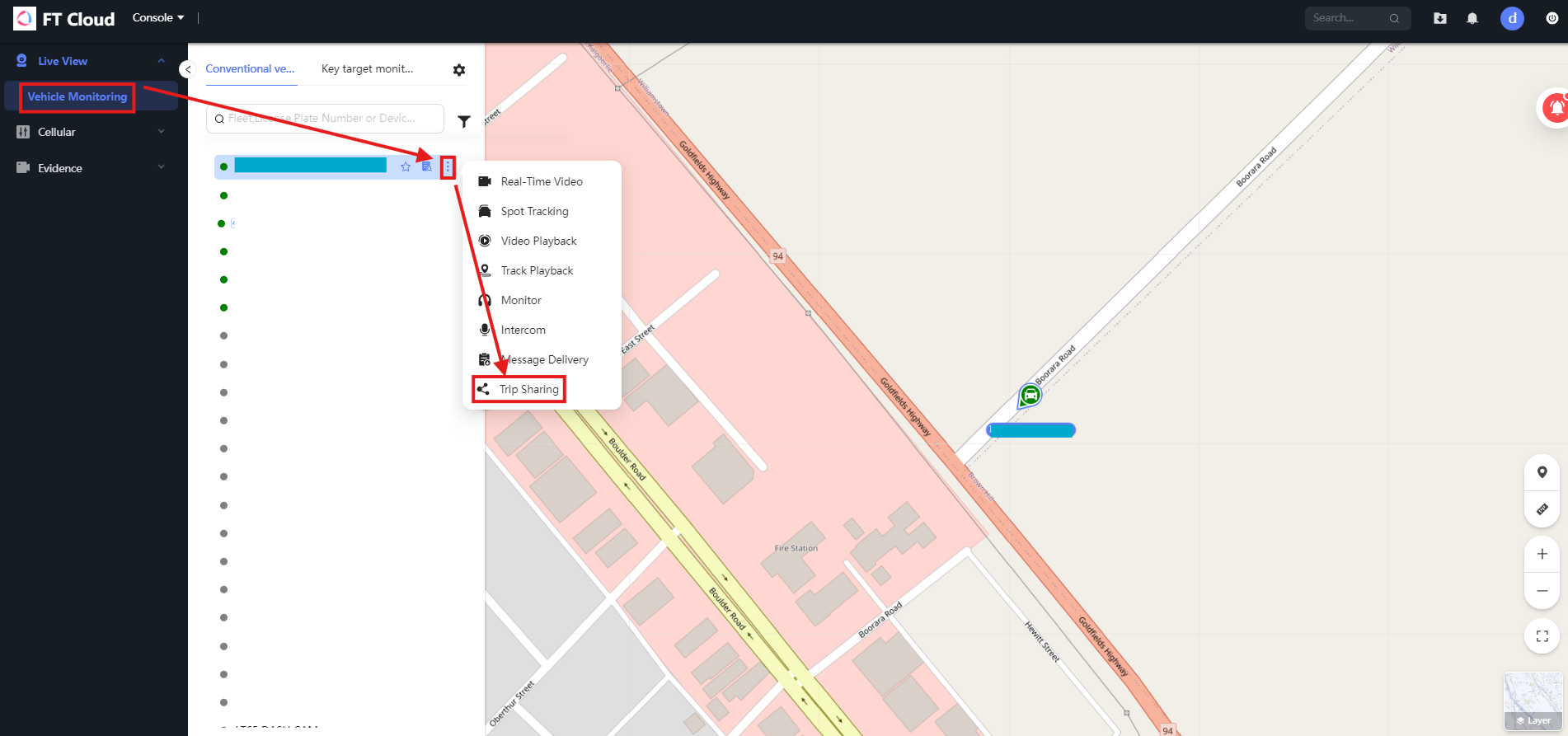

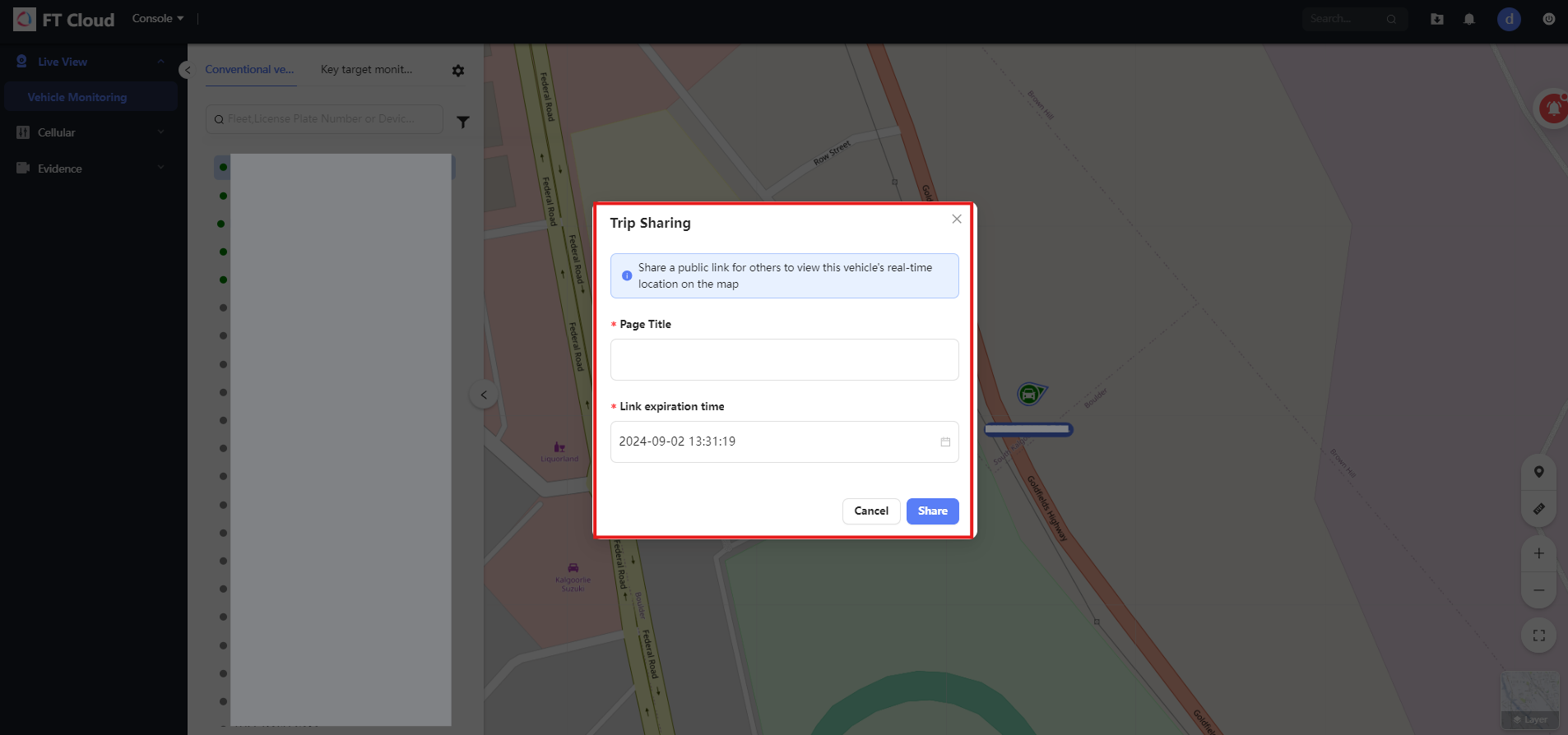

5. Trip Sharing;
   allows you to share a public link for others to view this vehicle's real-time location on the map.
