Work Area

Work Area

In the left part of the screen, there is a work area in which various actions with different elements of the system are performed, as well as various requests, are formed.

Depending on the tag chosen in the top menu, one of the following panels can be opened in the work area:

Monitoring — tracking units position, state and movements.
Tracks— viewing movement history.
Messages — viewing the messages that come from the units.
Reports — a wide range of instruments for analysing and sorting the data received from a unit.
Geofences — creating, editing, removing geographical areas.
Routes— creating and monitoring the traffic route of a unit according to its schedule.
Drivers— creating drivers and assigning them to units.
Trailers — creating trailers and binding them to units.
Passengers — creating passengers and binding them to units.
Jobs — creating, editing, removing jobs performed on schedule.
Notifications— creating, editing and removing notifications of events.
Users — managing other users.
Units — managing available units.

Top menu can also include two panels which are not shown in the work area. They are:

 Tools — tools for calculation distance and area, laying the best routes, searching for the nearest units, etc.

 Apps — applications that solve various user's tasks.

Main Menu Adjustment and Navigation

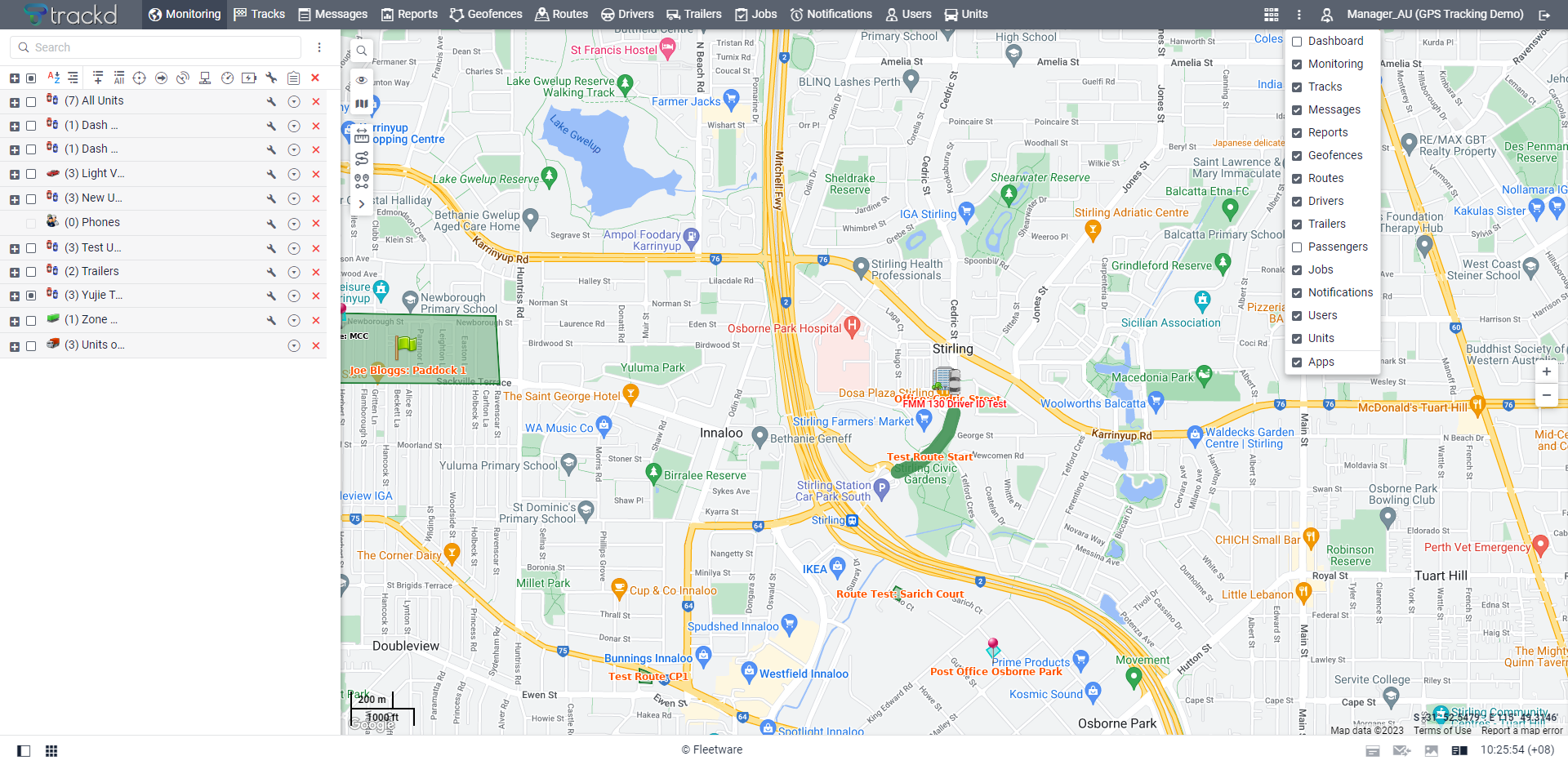

To adjust the main menu, click on the customiser icon  and select the menu items you would like to work with. The selected items appear immediately in the top menu. The panel that is currently open is highlighted with a dark grey background. To navigate through the menu, you just need to click on the required name. The contents of the left panel (the work area) changes automatically.
