Install Guide – AD Plus V2

Install Guide – AD Plus V2


Device Provisioning

  1. The AD Plus V2 comes with a pre-installed SIM card and is provisioned on our GPS tracking platform, and video monitoring platform.
  2. The AD Plus V2 also come pre-installed with SD Card(s) for on-board video recording.
  3. Each device is checked for connectivity prior to being delivered to a client site.
  4. The only adjustment to the camera that is required during installation is the setting of the camera angles for each specific vehicle type.

Installation Tips

Selecting Camera Placement

Requirements for installation area of AD Plus V2:

1.     The AD Plus V2 must be installed in the middle of the front windshield, generally in the rear-view mirror area above the centreline of the front windshield. If this is impossible, the leftward or rightward deviation of the installation position shall not exceed 40cm (the leftward or rightward deviation of the AD Plus V2 relative to the centreline of the front windshield is calculated with the centreline of the forward-facing camera lens as an index).

2.     The external camera lens of the AD Plus V2 must be located within the working range of the left and right windshield wipers as required (make sure that the screen of the external camera lens is clean and free from stains).

The installation position shall be determined in such a way that the AD Plus V2 will not hinder the driver from viewing the front blind spot reflector, and there is no obstruction (such as interior rear-view mirror or glass coating) within the field of view in front of and around the internal and external cameras lens.

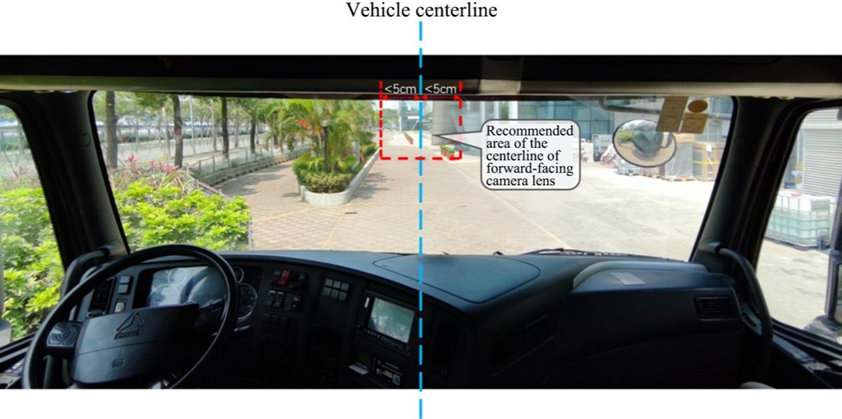

The installation area is generally selected as shown in the figure below:


Preparing the Installation Area

Getting the surface right up front can save time and trouble later. Cleaning helps form a better bond, and some contaminants require more attention than others. Priming can also improve the ability of the adhesive to stick to the substrate in certain situations.

Cleaning
  1. Quick pre-clean of interior and exterior of installation area for tough spots if necessary
  2. Use a wet disposable towel or cloth (light colours preferred to show contaminant removal)
  3. Final clean of installation area with the provided alcohol wipe


Priming
A primer creates a new surface for the adhesive to bond to and can improve initial and ultimate adhesion. Many primers are available, however we recommend using 3M Tape Primer 94 where available.
  1. Clean before priming (see above)
  2. Apply primer across installation area
  3. Let dry before applying tape


Installing the Camera Bracket

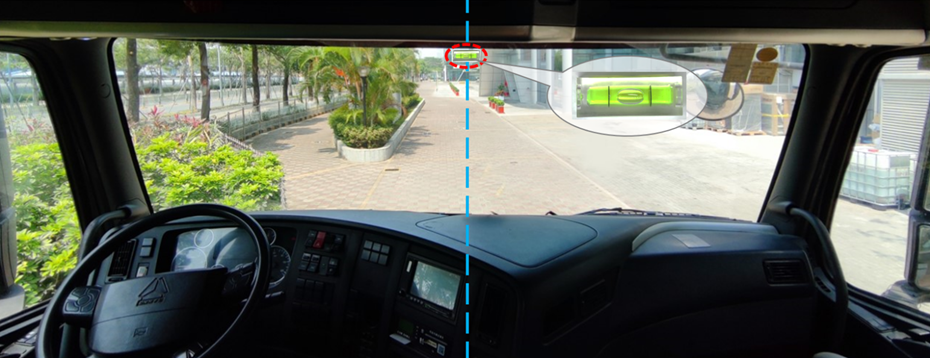

Park the vehicle on the horizontal ground, and then stick the level horizontally above the target area (adjust the inclination angle of the level to center the bubble).

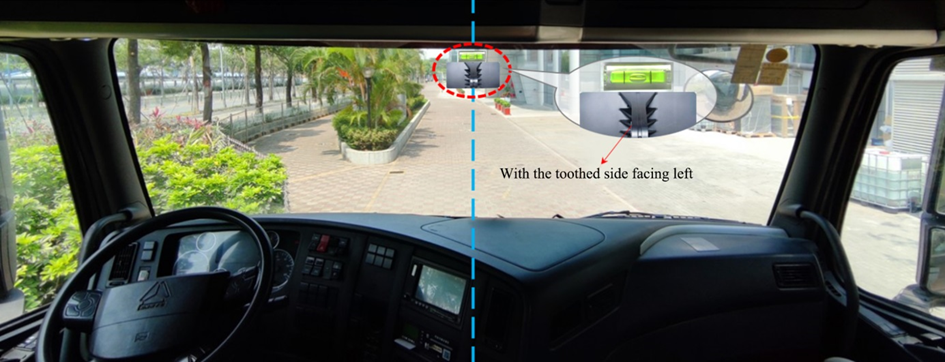

Ensure the toothed side of the bracket is facing left.

Tear off the 3M tape adhesive film on the bracket to stick the bracket horizontally on the front windshield with the level as reference, and then press the bracket for 10s to ensure no bubbles between the bracket and the glass. Leave the bracket on the installation area without the camera attached for 20 - 60 minutes to ensure maximum adhesion of the 3M tape on the glass.



Alert
IMPORTANT: To ensure maximum adhesion of the 3M tape to the glass, we recommend that this step is done first before any wiring work is started as this will give time for the tape to bond.

Wiring Connection

  1. Power Supply
    1. Connect the RED WIRE to a vehicle positive source (+).
    2. Connect the BLACK WIRE to a vehicle negative source (-).
    3. Connect the ORANGE WIRE to a vehicle ignition source (+).
  2. Indicator Signals
    1. After locating the fuse board below the steering wheel or the front passenger dashboard, measure the cable corresponding to indicator/reversing signal according to the tips on the cover back of the fuse board or using a multimeter.
    2. For the standard hardwire, there are only two IO signal cables, so only connection to the left and right steering signals respectively is required.
    3. In both standard dashcam or fatigue dashcam installations, connect sensor input 1 to the left steering signal and sensor input 2 to the right steering signal.
  3. Connect Power Supply to AD Plus V2
    1. Plug the basic interface line into the short cable coming out of the Power Supply Box / Datahub. It will only fit into one of the short cables.
    2. Then, connect the long cable from the Power Supply Box / Datahub to the short cable coming from the top of the AD Plus V2 camera.
    3. Slide the included heat shrink over the area where the two cables connect, and heat gently until the heat shrink forms a tight cover across the cables.
  4. Positioning the Power Supply Box / Datahub
    1. The AD Plus V2 is equipped with a power supply box / datahub which has an in-built switch control. Therefore, the power supply box / datahub needs to be fixed on an accessible position in the vehicle. Please pay attention to the following tips when choosing the fixed position:
      1. Close to OBD interface or power ports of hardwiring
      2. Horizontal surface mounting
      3. No interference with other components
      4. Away from vibrating and jittering positions, such as trumps and motors
      5. Hidden positions preferred
  5. Connecting the R-Watch
    1. Connect the R-Watch to the R-Watch connector from the serial portal of the datahub

  6. Connecting the Seat Vibration Unit
    1. The Seat Vibrator is powered via a datahub as shown below:

    2. Connect the RED WIRE to the SENSOR OUT2 wire from the datahub sensor port.
    3. Connect the BLACK WIRE to a vehicle negative source (-).
Warning
Only a qualified auto-electrician should be used for wiring the device to the vehicle.

Installing the Camera

Connect the AD Plus V2 to the bracket with the front side facing inward (with the teeth on the left side of the bracket engaged with those on the left inner side of the AD Plus V2) and tighten the bracket stud clockwise with a PH2 cross screwdriver (before tightening, first adjust the AD Plus V2 to be vertical).



Adjust the AD Plus V2 back and forth to ensure that the AD Plus V2 is mounted as vertical as possible.

Fasten the bracket stud to ensure that the angle of the AD Plus V2 will not be changed easily.



Wiring Harness

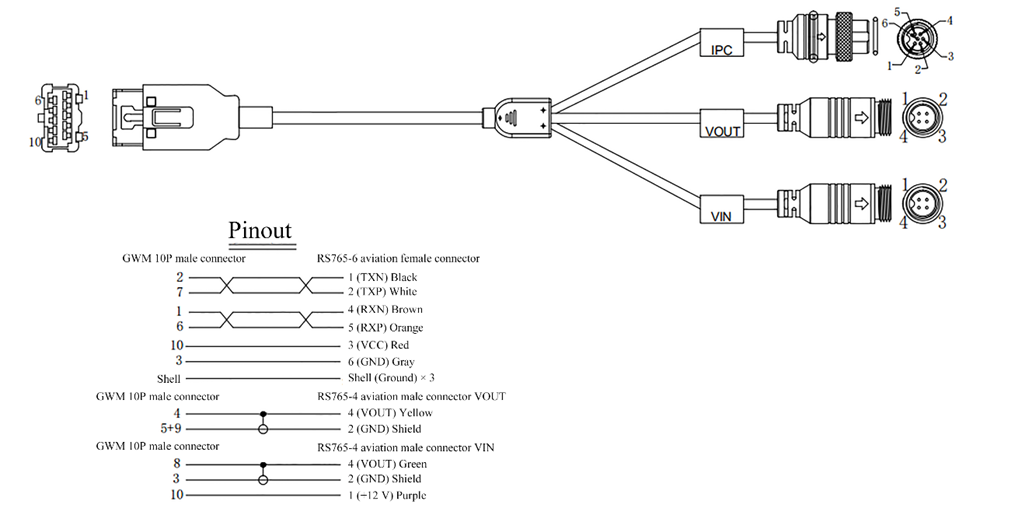

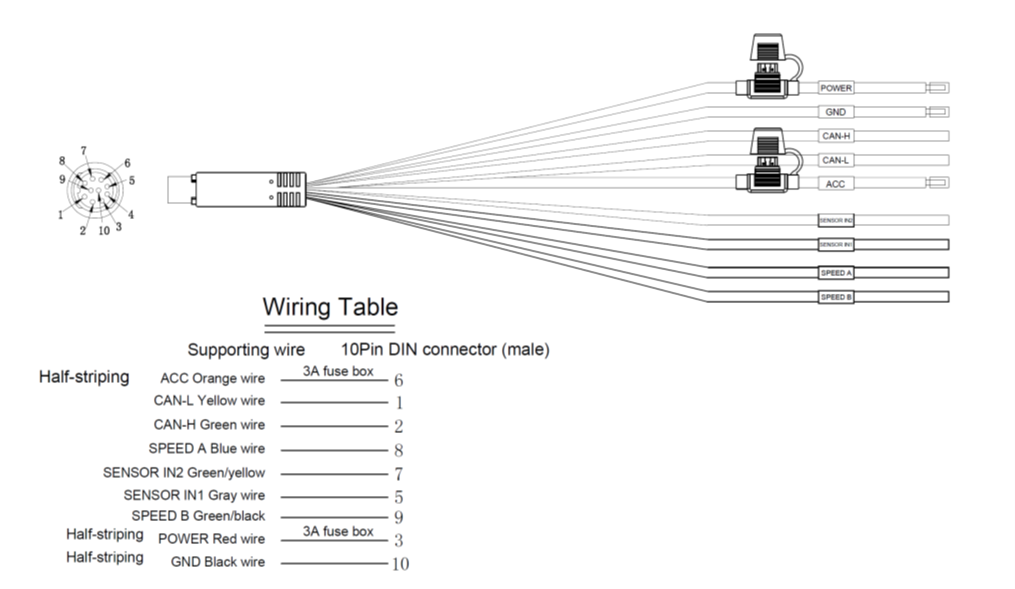

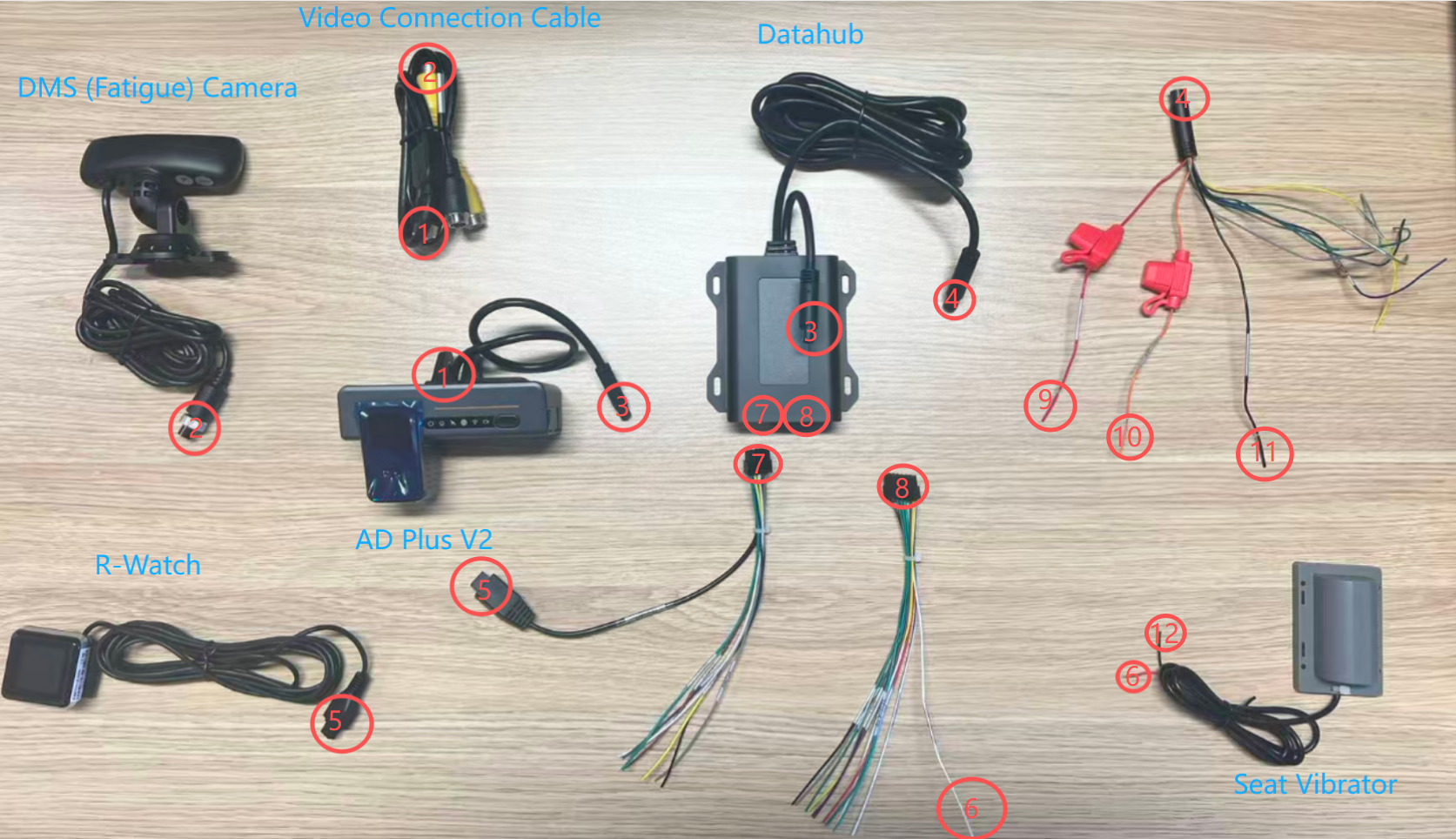

Connection diagram

Basic interface

Alert
Note: Please refer to the vehicle or asset wiring information before wiring the device, to ensure that the correct wires are being connected.



Video output interface

Alert
Note: This interface cable is only used for additional cameras and in-cab monitor.


Calibration

The Veyes App allows connectivity to the AD Plus V2 camera via the camera’s own local Wi-Fi network. This is required so that the installer can debug and calibrate the AD Plus V2 during installation.

You can download the Veyes App by tapping the icons below depending on your phone or tablet’s operating system:


IOS (Apple Store)

Android (Google Store)

Connecting the App

Start the vehicle and wait for the recording status indicator lamp and the communication status indicator lamp of the AD Plus V2 to light up. When the two indicator lamps turn green and are always on, it indicates that the AD Plus V2 is working normally.

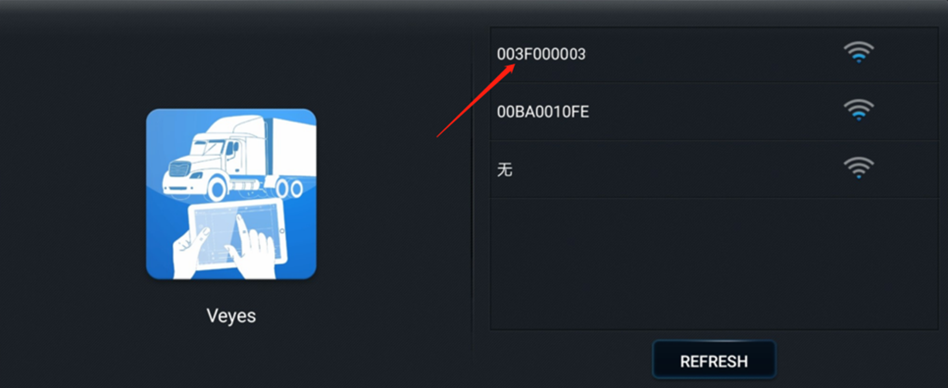

Before connecting the device with the Veyes App, please ensure that your mobile phone or tablet WiFi is turned on.

The AD Plus V2 will remain in AP mode for 2 minutes after it is powered on. At this time, you can open the Veyes App on your mobile phone or tablet and click the [Search] button to enter the WiFi hotspot search interface. When logging in for the first time, the name of the WiFi hotspot is defaulted to the AD Plus V2 encryption chip number (generally, ST-xxxxxxxxxx by default).

Alert
Note: Once you set the license plate number in the AD Plus V2, the hotspot name will become the license plate number going forward.

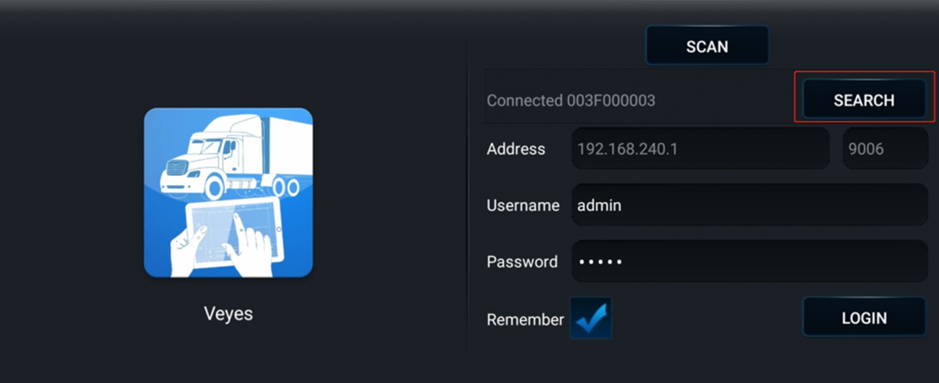

In the login interface, enter the corresponding username and password and click Login to enter the operation interface.
Alert
Note: The default username/password is admin/admin.

Warning
If no connection is established with the App within 2 minutes of vehicle start up, the Wi-Fi hotspot of the AD Plus V2 will be automatically switch off.

ADAS Calibration

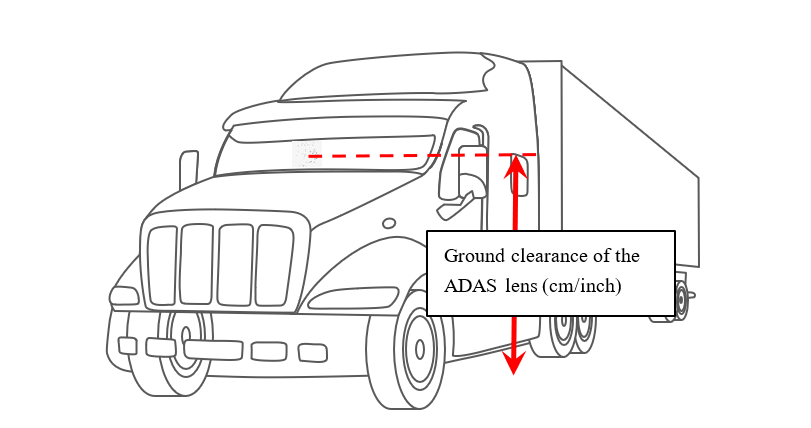

  1. Measuring the height of the ADAS Lens
    1. Use a tower ruler or tape measure to measure the vertical height (accurate to cm/inch) from the ground to the AD Plus V2 front-view lens as the installation height of ADAS lens:



  2. Calibration of ADAS Lens

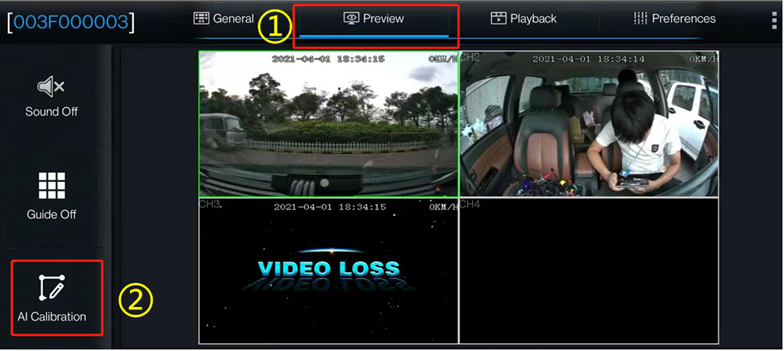

    1. In the Veyes App, click [Preview] > [AI Calibration]:



    2. Then click the ADAS button:

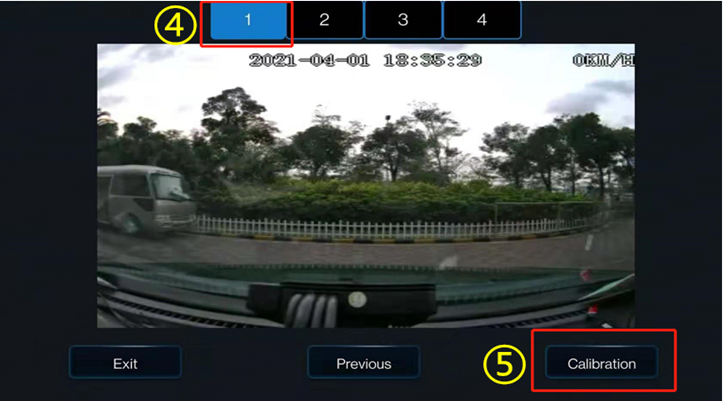

    3. Ensure Channel 1 is selected and then click the Calibration button in the bottom right:

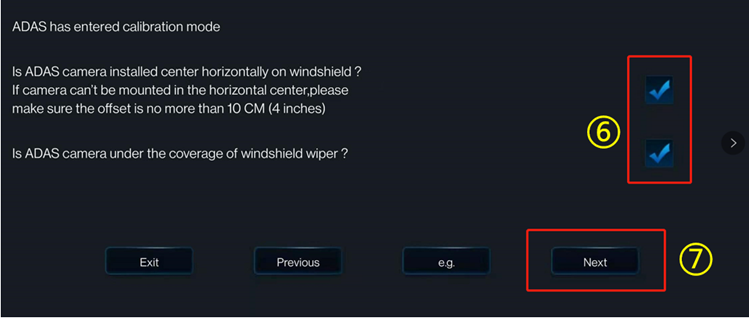

    4. Check the two checkboxes to confirm that the AD Plus V2 has been installed correctly and click the Next button:

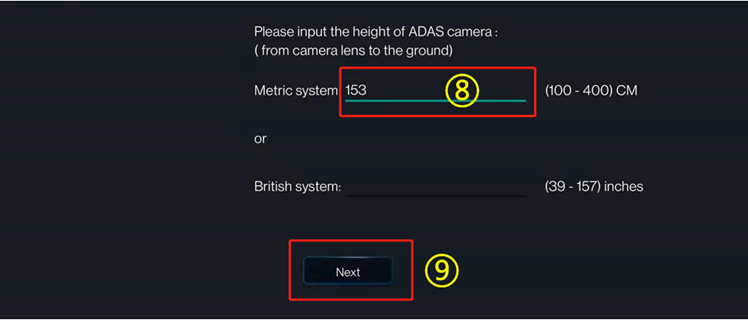

    5. Enter the measured horizontal ground clearance of the front ADAS lens in CM or Inches and click the Next button:



    6. Click Next (or you can click Learn more to get additional information on ADAS calibration):

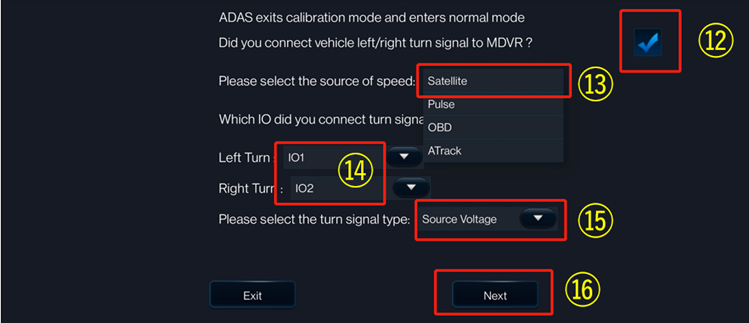

    7. Check the checkbox to confirm if you have connected the vehicle signals, and then:

      1. Select the source of the vehicle speed (Satellite, Pulse, OBD or ATrack)

      2. Select the IO wires that have been connected to Left/Right indicators

      3. Select the indicator signal type (Source Voltage, Source Pulse)

      4. Click the Next button



    8. On the next screen you can test the Left and Right indicators are triggering correctly when applied. Once you are satisfied that they are working correctly, click the Complete button:

DMS Camera

DMS Camera Placement

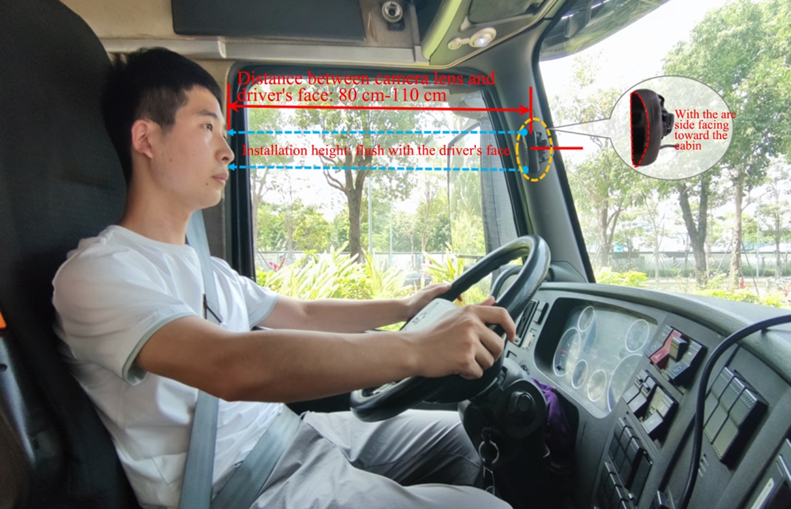

  1. The DMS camera shall be installed on the A-pillar on the driver's side, with the side facing the driver's face.
  2. The DMS camera lens shall be 80-110 cm away from the driver's face.
  3. The installation height of the DMS camera on the A-pillar shall be flush with the driver's face.



  4. Adjust the angle of the DMS camera up and down, and left and right, to ensure that the driver's face appears in the middle of the video screen and the lower edge of the screen is below the driver's chest.

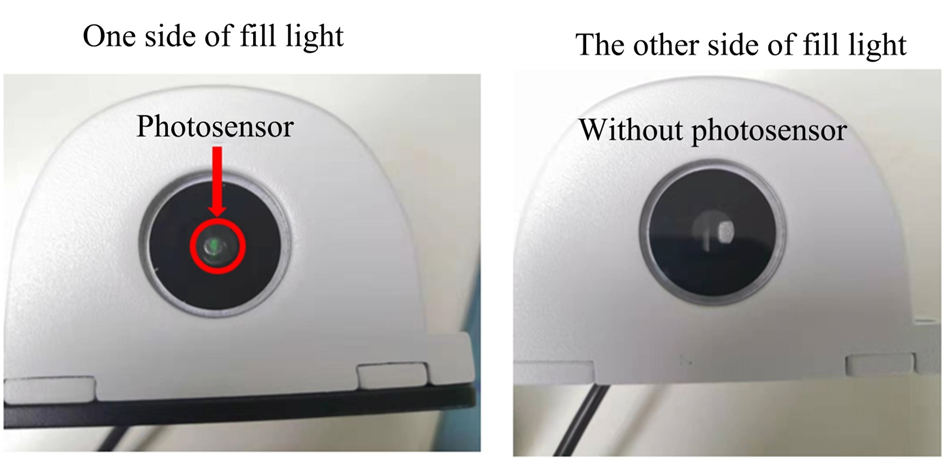

  5. Make sure that the fill light of the DMS camera faces toward the driver's face (the fill light shall not face toward the seat belt; otherwise, it will lead to overexposure of video).
  6. Make sure that there is no other object (such as steering wheel) in the DMS video screen that will block the driver's face and the seat belt features.
  7. In the event of installation on A-pillar, the labelling surface of the DMS camera must face toward the A-pillar (with the arc side facing toward the driver).
  8. In the event of installation on dashboard, the labelling side of the DMS camera must face down (with the arc side up).

Installation

  1. Connect the end of the cable from the DMS Camera to the "VIN" port on the Video-Out cable.
  2. Connect the Video-Out cable to the top port of the AD Plus V2 camera unit.
  3. Power on the AD Plus V2, and connect to the Veyes App.
  4. Enter the real-time preview screen, and first check whether the image from the DMS Camera is the correct orientation while at the target installation position:

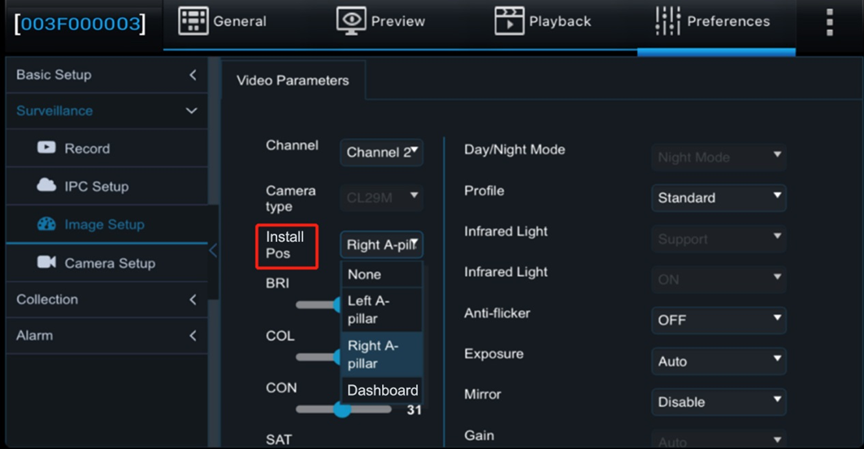

  5. If the orientation is incorrect and the image is upside down, click [Preferences], [Surveillance] and [Image Setup] in sequence, and then select corresponding channel of the DMS camera. Then select the corresponding installation position at "Install Pos":
    1. In the event of installation on the left A-pillar, select "Left A-pillar".
    2. In the event of installation on the right A-pillar, select "Right A-pillar".
    3. In the event of horizontal installation on the dashboard, select "Dashboard".

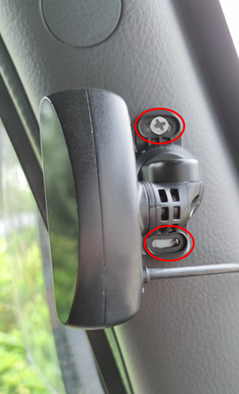

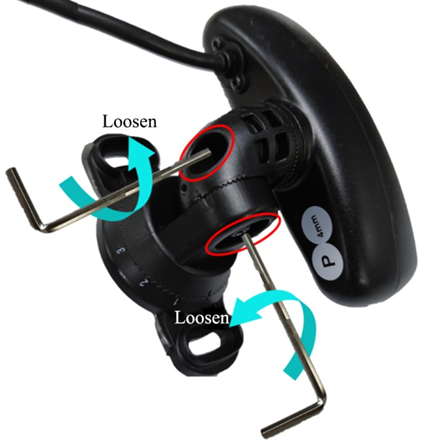

  6. Once the correct installation position is achieved, first tighten the upper screw of the DMS camera mount (with the lower screw of the mount not tightened temporarily, so as to adjust the angle of the camera up and down):



  7. Adjust the left and right angle joints of the DMS camera through the hexagon socket screws, so as to adjust the angle of the DMS camera left and right:



  8. After adjusting the angle of the DMS camera up and down/left and right, make sure that the driver sits according to normal driving habits and posture, to meet the following conditions:
    1. Make sure that the driver's face appears in the middle of the video screen, and the lower edge of the screen is below the driver's chest.
    2. Make sure that the fill light of the DMS camera faces toward the driver's face (the fill light shall not face toward the seat belt; otherwise, it will lead to overexposure of video).
    3. Make sure that there is no other object (such as steering wheel) in the DMS video screen that will block the driver's face and the seat belt features.

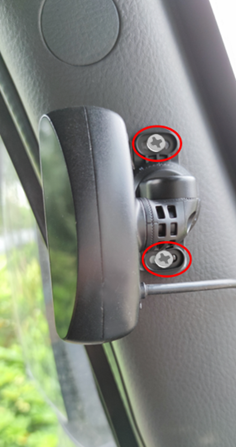

  9. Tighten the lower screw of the DMS camera mount and the screws at the left and right angle joints to ensure that the camera will not shake up and down or left and right:



Calibration

  1. Login to the Veyes App

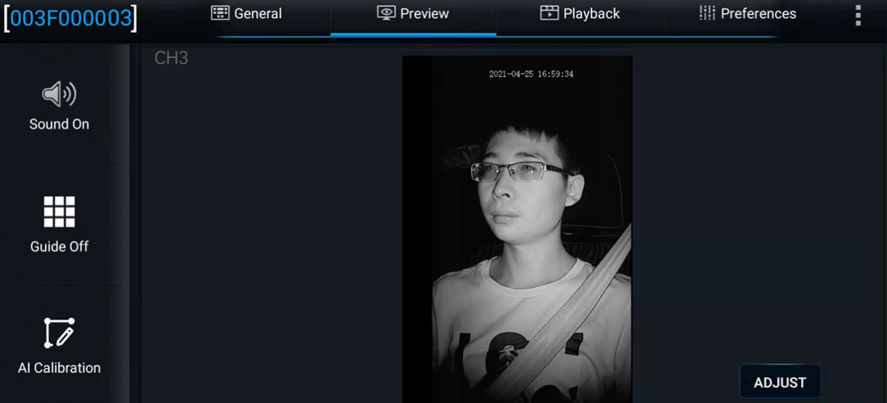

  2. Click [Preview] on the homepage to enter the preview interface, and double-click the driver channel to enter the main-stream full screen.
  3. Ensure the regular driver of the vehicle is sitting in the drivers seat in their regular posture, ensuring the driver's face appears in the middle of the screen and the lower edge of the screen is below the driver's chest.
  4. Click [AI Calibration] for calibration selection:



  5. Select [DMS] for calibration, and select the corresponding channel of the DMS camera (usually channel 3).
  6. Click [Calibration] to move on to the next step:

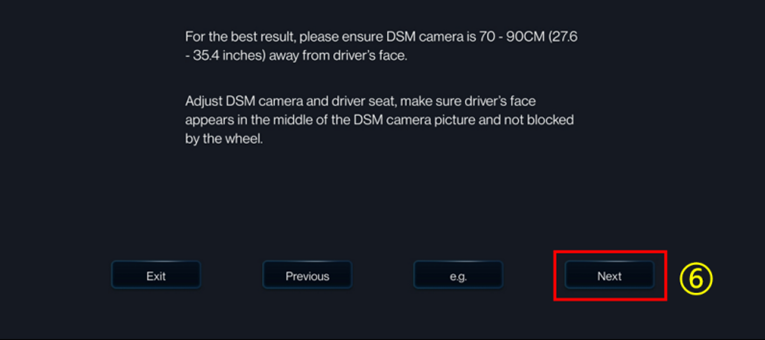

  7. Confirm the prompts and click [Next] to move on to the next step:

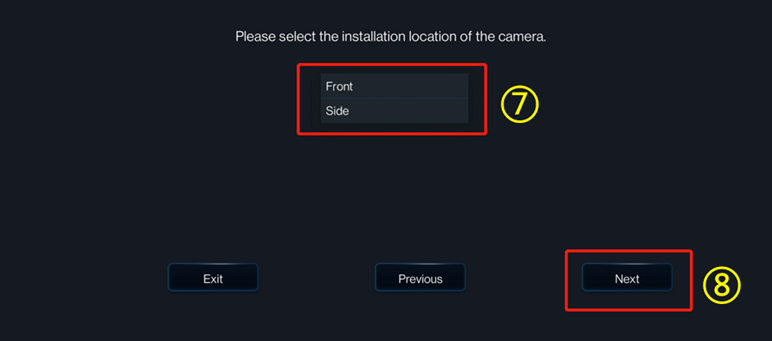

  8. Select [Front] or [Side] to determine the installation method of DMS camera. If the camera is installed on the A-pillar, select "Side" for side calibration.
    If the camera is installed right in the middle of the dashboard, select "Front" for front calibration:



    Warning
    Ensure the correct option is selected that matches the installation position of the camera, otherwise the camera will be calibrated incorrectly.
    Alert
    Note: Before clicking [Next] to start the formal calibration, ensure the driver is sitting in their normal driving posture and looking straight ahead.
  1. Click [Next] to move on to the next step for automatic face calibration. During calibration, make sure that the driver sits still according to normal driving habits and posture and looks straight ahead. In the process of side calibration, the intelligent algorithm will automatically learn the driver's head deflection angle and the positions of feature data of the driver's face.
  2. The driver sits still and waits for the equipment to be calibrated automatically. When the value of NUM reaches 301 in the mode of side installation and side calibration (51 in the mode of front installation and front calibration), the calibration frame turns to red from blue, and then the automatic calibration ends:

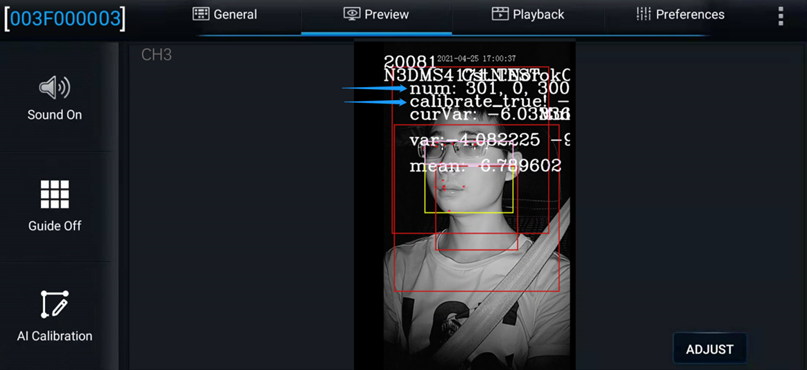

    On-going Calibration:


    Calibration Completed:


  3. Click [Finish] to complete the calibration and exit the calibration mode.
Alert
Note: If the driver moves his head during the calibration, the calibration will restart automatically.
Warning
Note: In the side calibration mode, there must be an angle between the driver's face and the camera to complete the calibration. In the front calibration mode, the camera must be in front of the camera to complete the calibration.

Side BSD Camera

Side BSD Camera Placement

  1. The BSD camera is suitable for installation at the left/right tail of the vehicle body. The lens shall face forward and be installed at the height of 195 cm±15 cm to the ground.
  2. The BSD camera must be installed vertically.

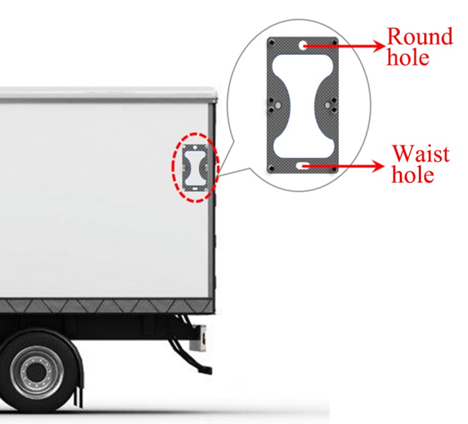

  3. The installation position of BSD camera on the vehicle body shall be flat without any inclined arc surface, and be convenient for drilling and wiring.

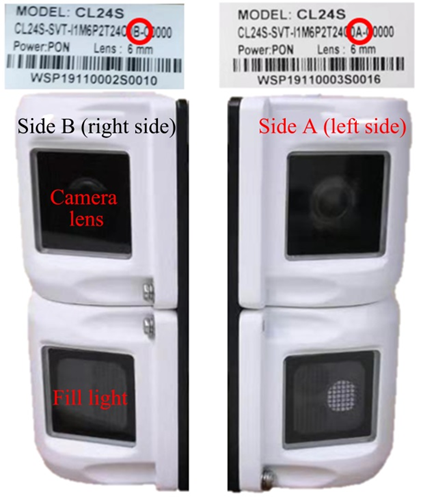

  4. As shown in the figure below, "B" is in the red circle of the label, indicating that the camera is installed on the right side, and "A" is in the red circle of the label, indicating that the camera is installed on the left side:



  5. The camera must be assembled with the lens at the upper part and the fill light at the lower part, regardless of left or right camera. Moreover, the photosensitive side of the fill light must face down:



  6. During installation of the BSD camera, the BSD camera base can first be installed with the round hole at the upper part and the waist hole at the lower part (so as to facilitate adjustment left and right, and thus ensure the vertical installation of BSD):

Installation

  1. Park the vehicle on the flat ground.
  2. At the selected installation position, drill the first hole with a 2.8mm drill bit, and then properly fix the camera mount. Make sure that the round hole is at the upper part and the waist hole at the lower part, as shown below:



  3. Align the mount with a level, and drill the remaining three screw holes. At the same time, drill a tail harness inlet hole for the camera at the appropriate position with an 18mm tapper, and then apply glass sealant to the screw holes on the vehicle body. Finally, tighten the mount screws, as shown below:



  4. Fix the camera on the mount (first apply excessive glass sealant to the inlet hole), and measure the installation height of the lens, as shown below:

Calibration

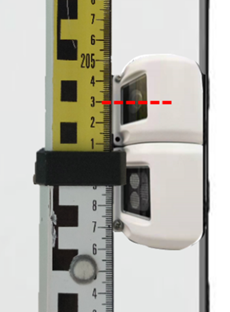

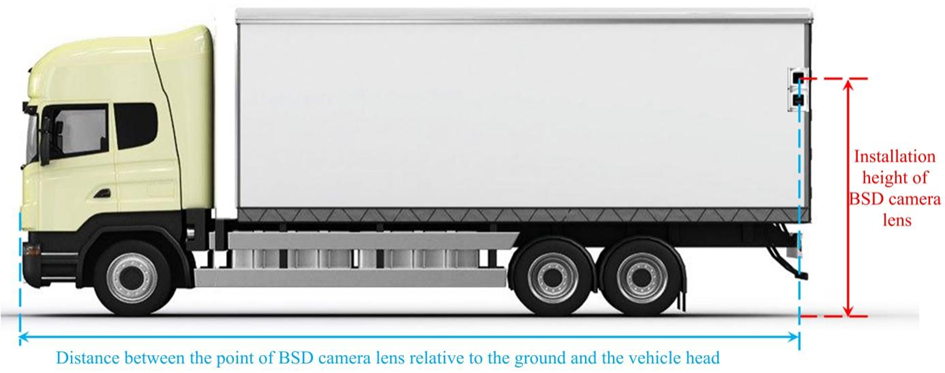

  1. Measure the distance between the point of the BSD camera lens relative to the ground and the vehicle head and the installation height of the camera (i.e. height from the camera lens to the ground, accurate to cm) as below:



  2. Login to the Veyes App.

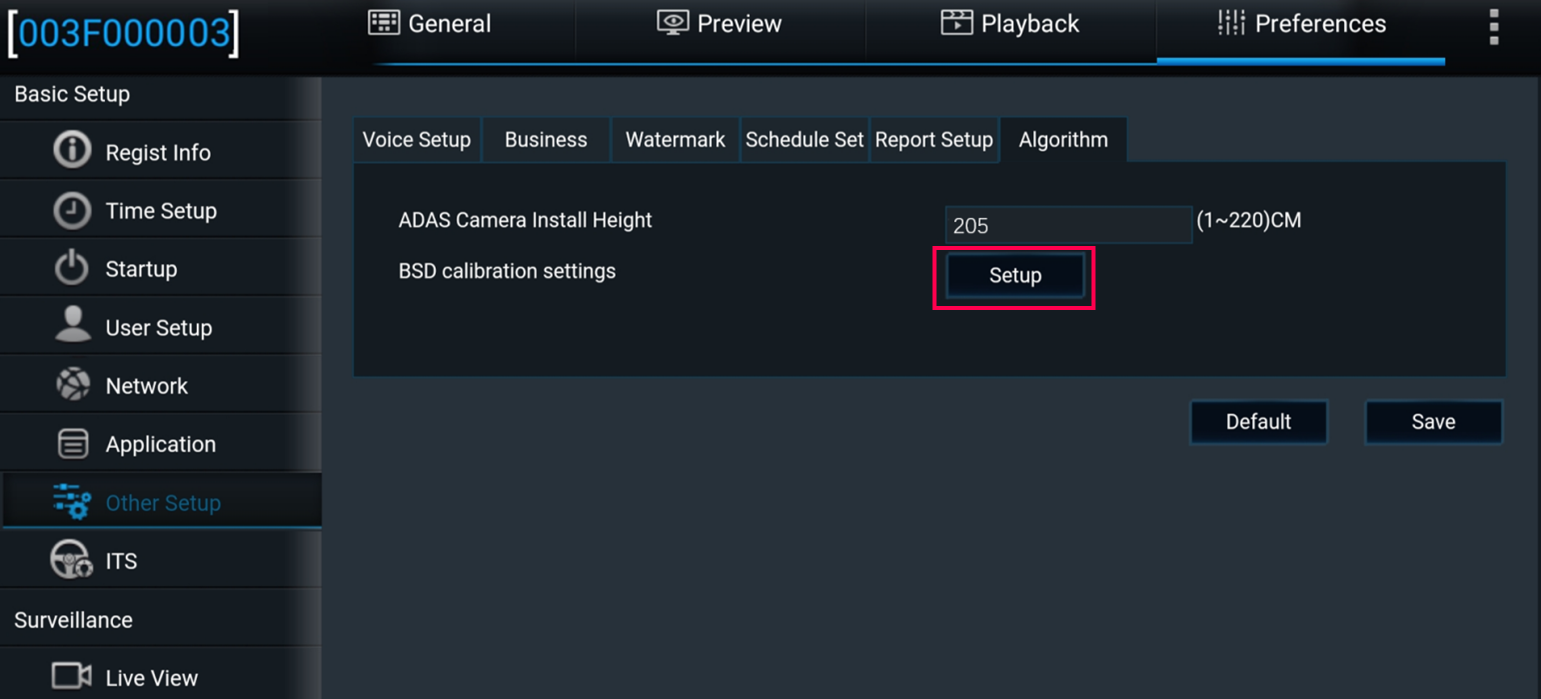

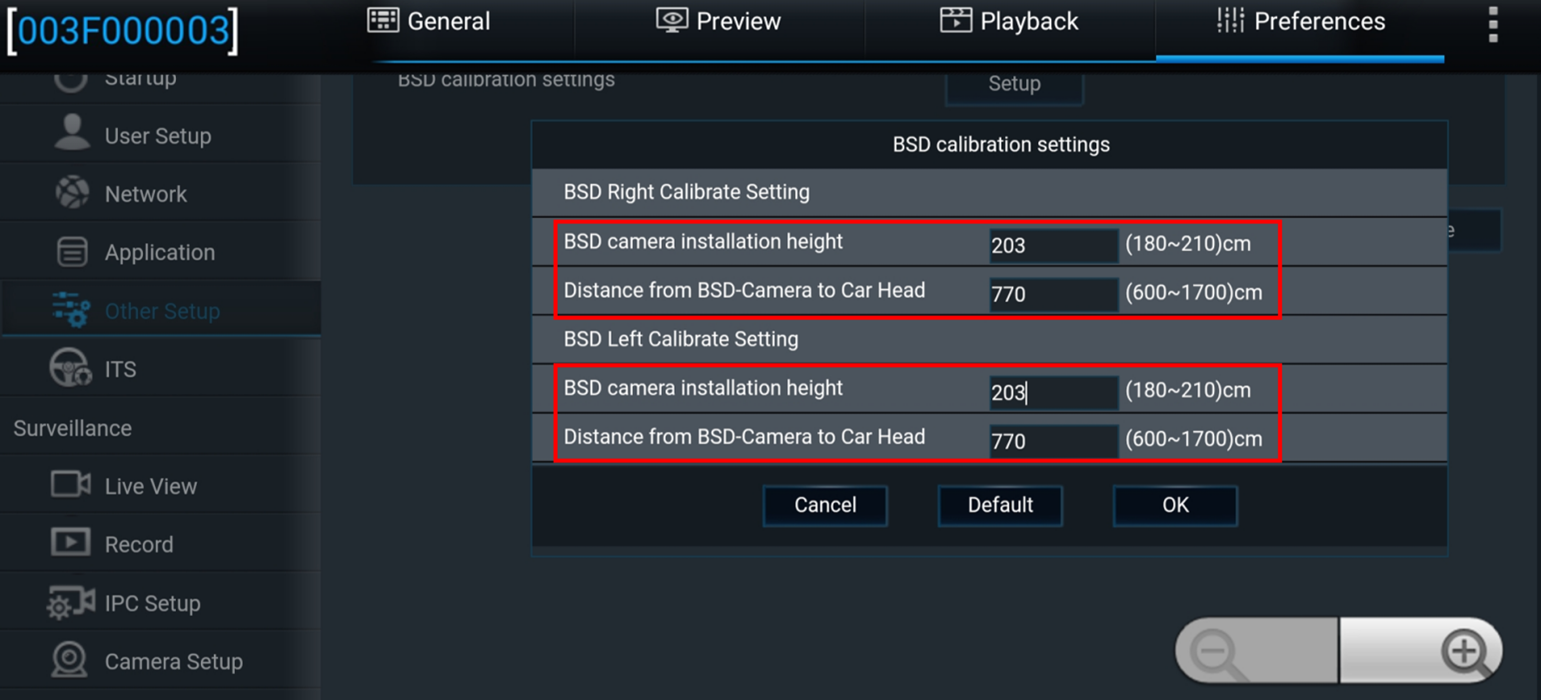

  3. Click [Preferences], [Basic Setup], [Other Setup], [Algorithm], [BSD calibration settings] in sequence, and then enter the following two values: distance between the point of the BSD camera lens relative to the ground and the vehicle head, and installation height of BSD camera:

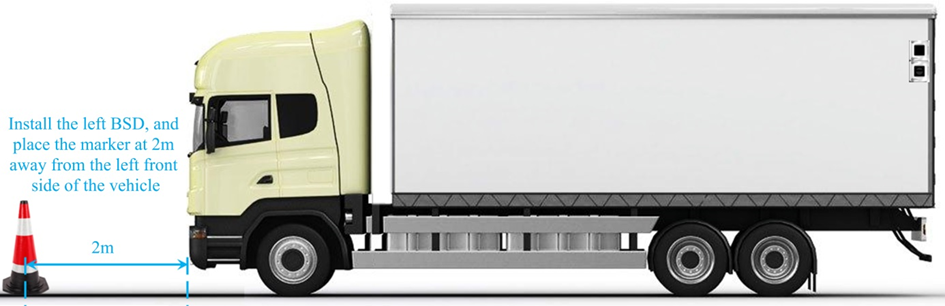

  4. Place a marker close to the side of the vehicle and 2m in front of the vehicle head, as shown below:



  5. Click [Preview] on the homepage to enter the preview interface, and double-click the BSD Camera channel to enter the main-stream full screen:



  6. On the preview interface, click [AI Calibration] and select [BSD], as shown below:



  7. Select the left or right BSD to be calibrated, and enter the real-time preview screen. Here, take the right BSD as an example:

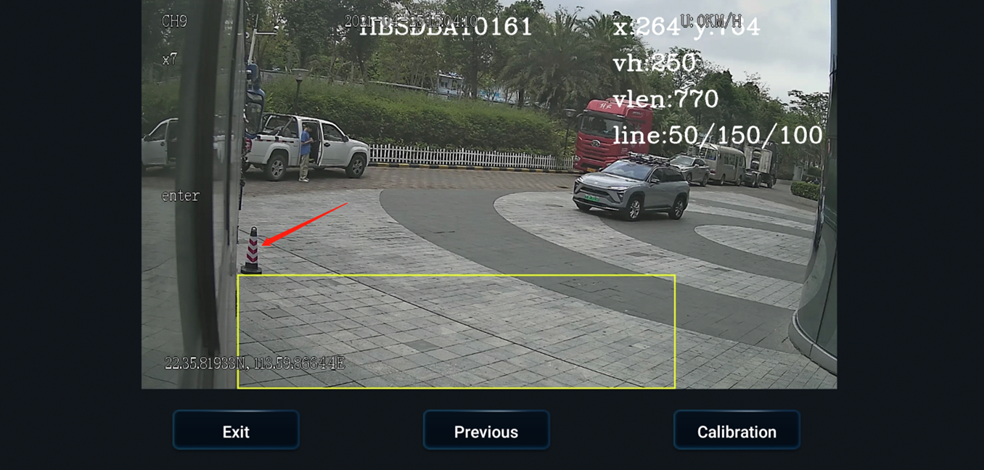

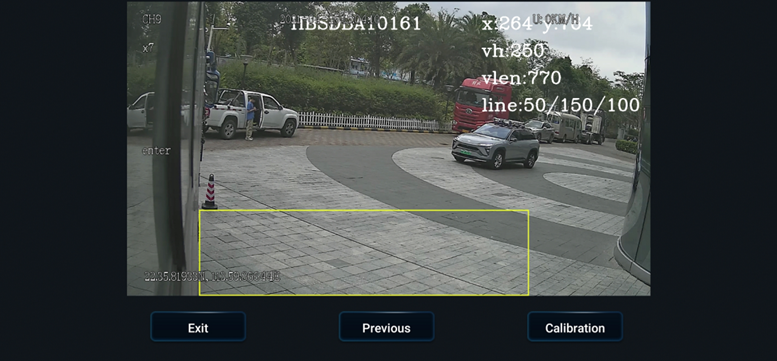

  8. On the real-time preview screen of BSD, click [Calibration] at the bottom of the real-time screen, At this point, a red vertical line, a yellow horizontally inclined line and a yellow box appear on the screen, and "Up", "Down", "Left" and "Right" buttons appear on the left side of the screen:



  9. Click the "Left" and Right" buttons on the left side of the screen to move the "red vertical line" in the real-time screen until it just fits the edge of the vehicle body, and then click the "Up" and "Down" buttons to move the "yellow inclined line" in the real-time screen until it just coincides with the mark point on the ground at 2m away from the vehicle. (As shown above, the "vertical red line" coincides with the edge of the vehicle in the screen, while the "inclined yellow line" coincides with the traffic cone mark point on the ground at 2m away from the vehicle.)
    Confirm that the "red vertical line" and the "yellow inclined line" fit corresponding edges well, and then click [Save].
  10. At this point, the BSD calibration ends, and the alarm speed threshold can be changed to 0 to test the alarm trigger.

Connecting to Other Devices

Remote Worker (V1)

It is possible to connect the AD Plus V2 camera to our Remote Worker (V1) solution to allow for limited information on critical events triggered on the AD Plus V2 to be sent via the satellite Iridium network when outside of cellular coverage. This can be achieved by connecting one of the OUTPUT lines from the AD Plus V2 (via it's optional Datahub) to an INPUT line on the Remote Worker (V1) solution, as shown in the below diagram:



Alert
Note: This function can only be achieved through using the optional Datahub component with the AD Plus V2camera.

Remote Worker (V2)

It is possible to connect the AD Plus V2 camera to our Remote Worker (V2) solution to allow for limited information on critical events triggered on the AD Plus V2to be sent via the satellite Iridium network when outside of cellular coverage. This can be achieved by connecting one of the OUTPUT lines from the AD Plus V2 (via it's optional Datahub) to an INPUT line on the Remote Worker (V2) solution, as shown in the below diagram:


Alert
Note: This function can only be achieved through using the optional Datahub component with the AD Plus V2 camera.

Device Testing

On completion of the installation, please contact us on 1300 88 36 79 to allow us to check that the device is correctly functioning.

Notes
Please have the device serial number (printed on the device box) and Customer Name ready.
